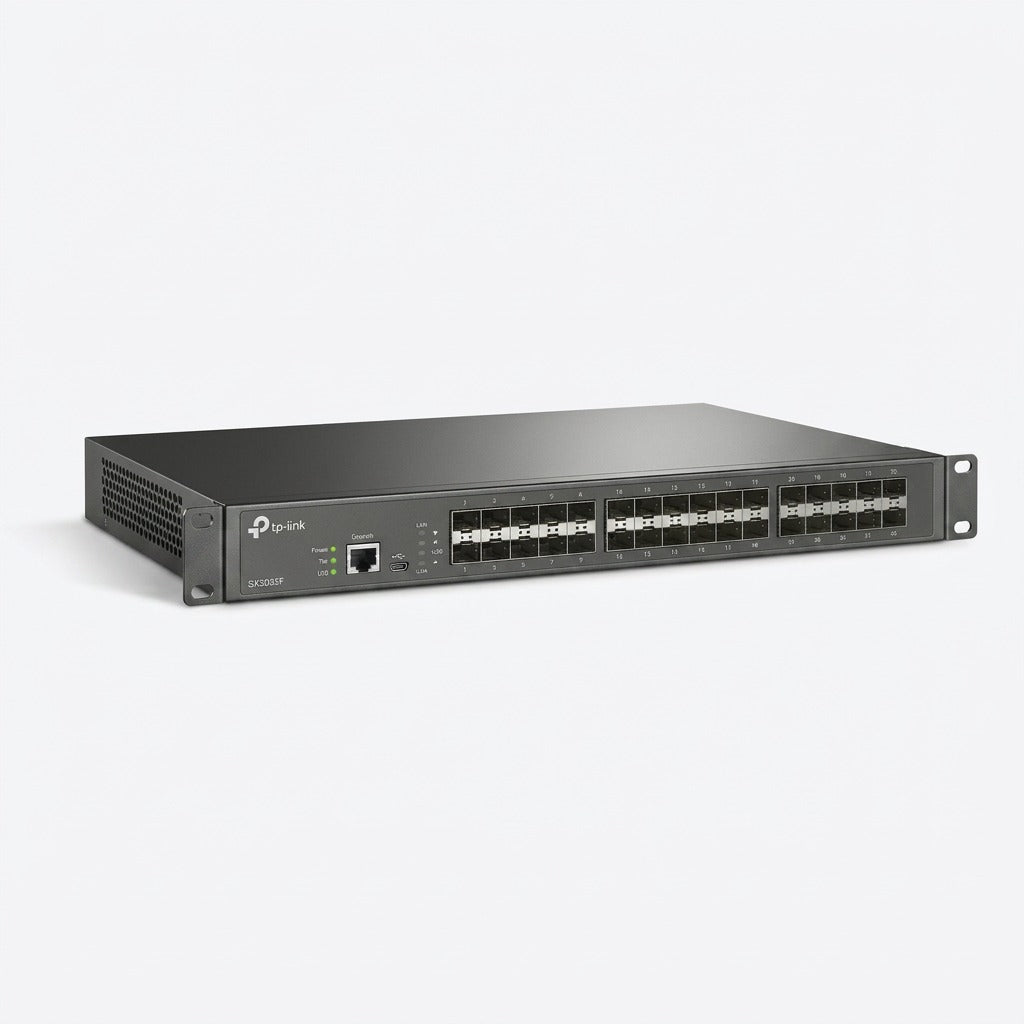

  • TP-Link SX3032F 32-port 10G SFP+ managed network rackmount switch with front console ports

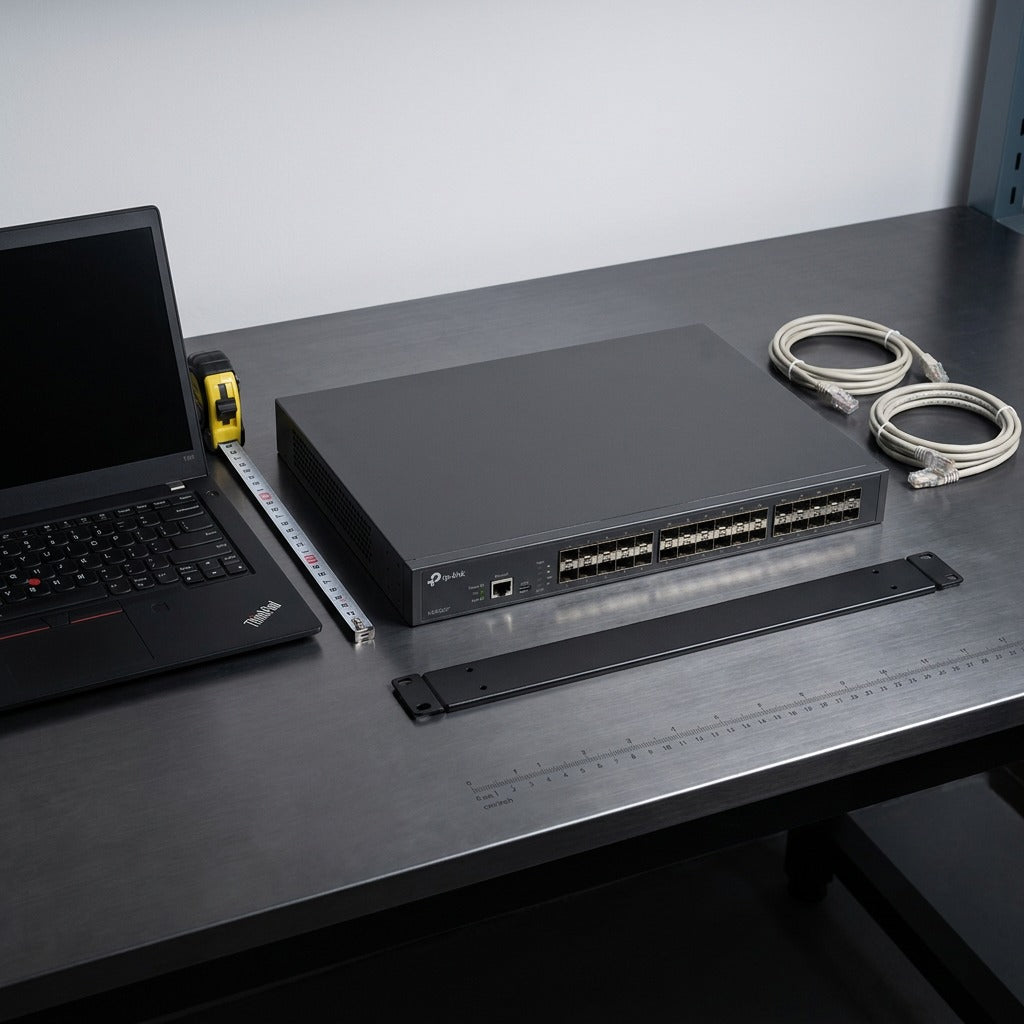

  • Scale reference of the TP-Link SX3032F switch beside a laptop, tape measure, and rack mount rail.

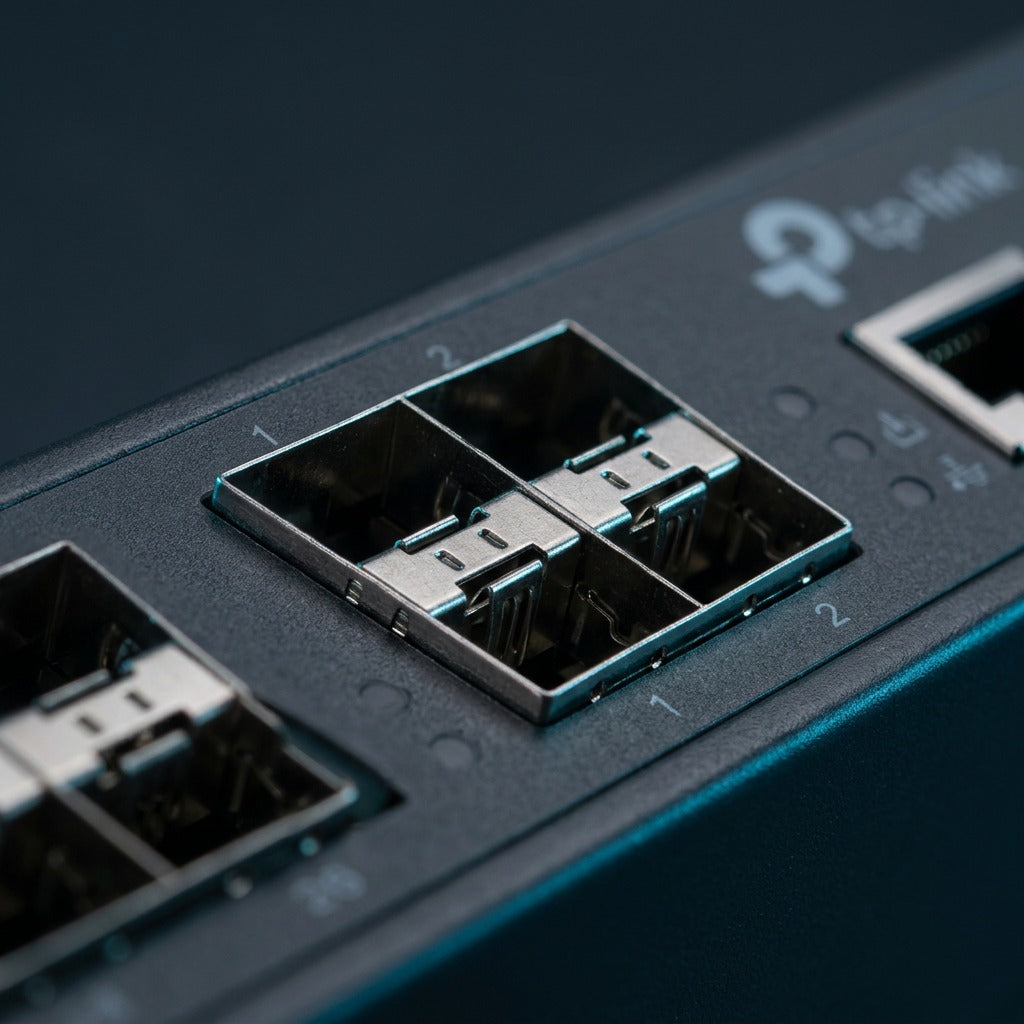

  • Macro detail of SFP+ optical ports and metallic cages on a TP-Link SX3032F switch panel.

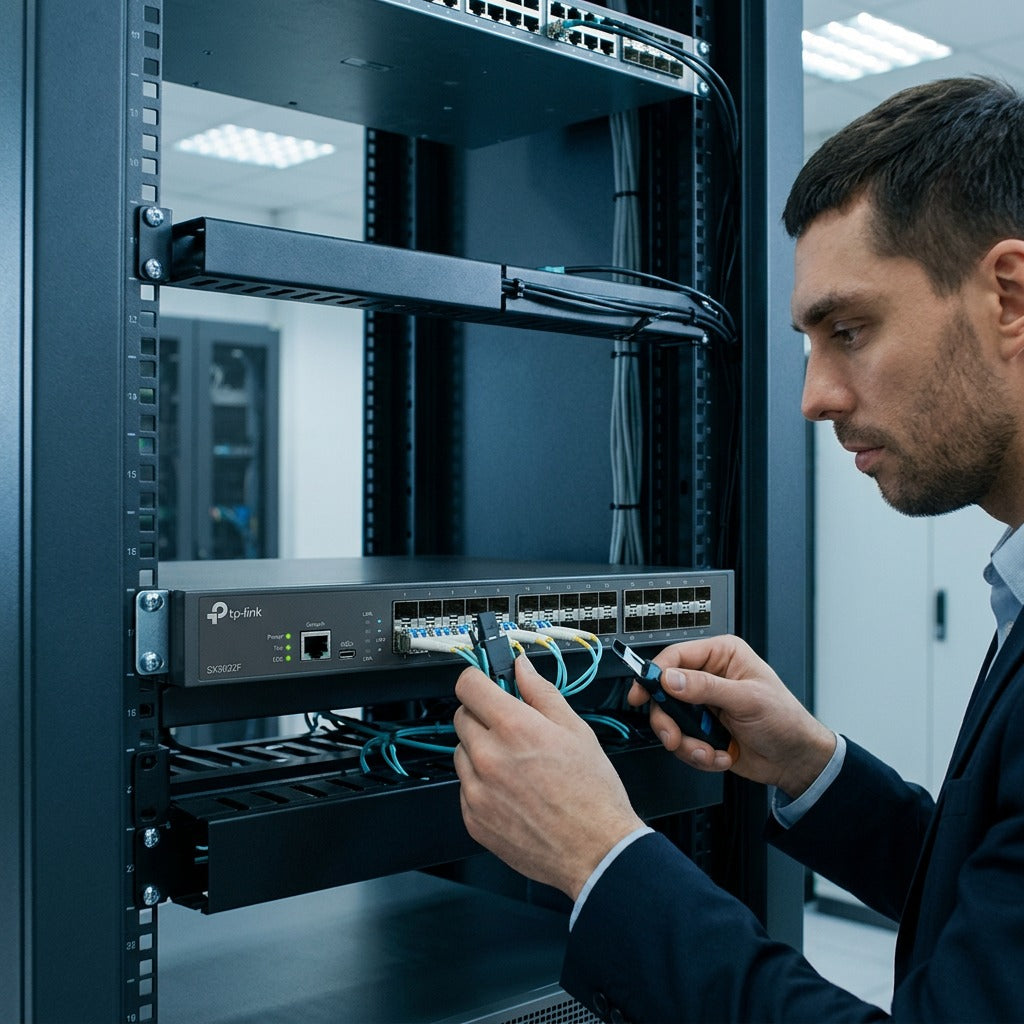

  • IT engineer connecting fiber optic cables to a TP-Link SX3032F switch in a data center rack.

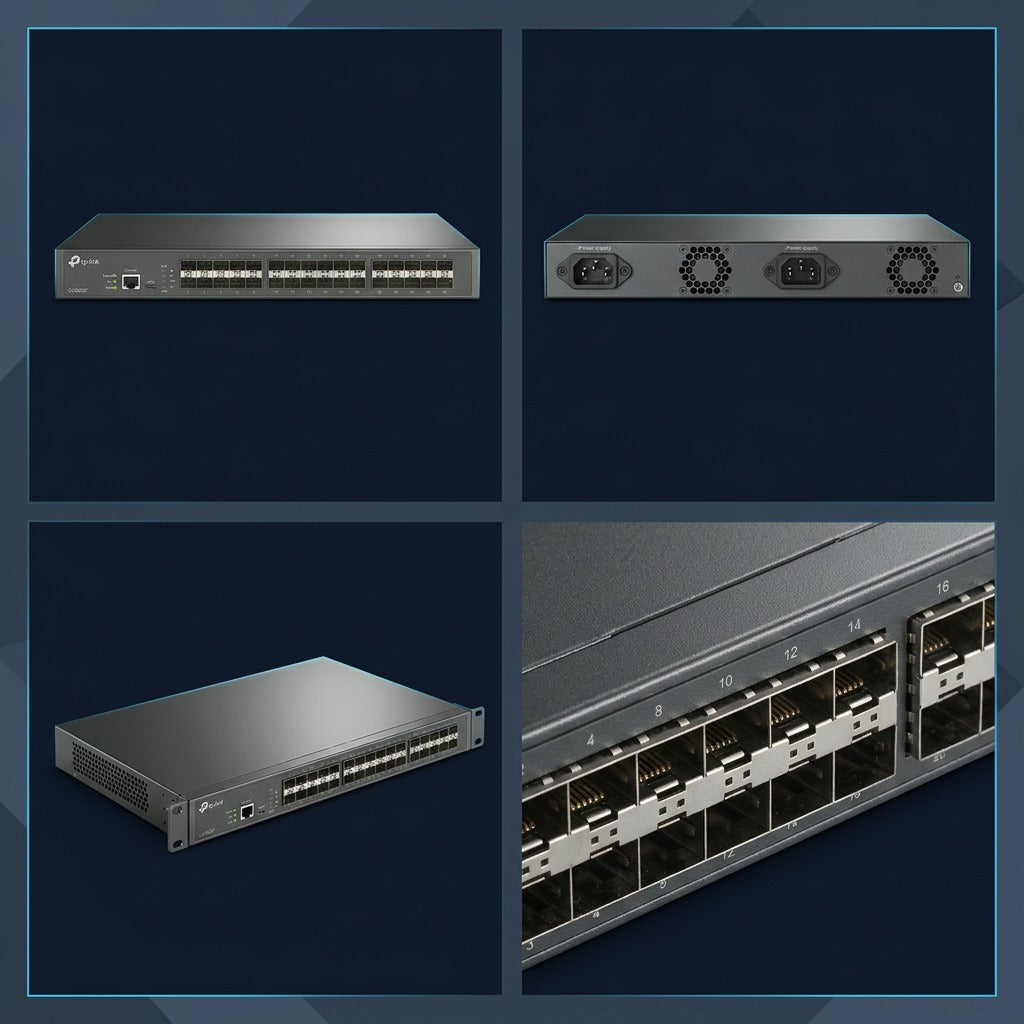

  • Multi-angle view of TP-Link SX3032F switch showing front ports, rear power inputs, and rack ears.

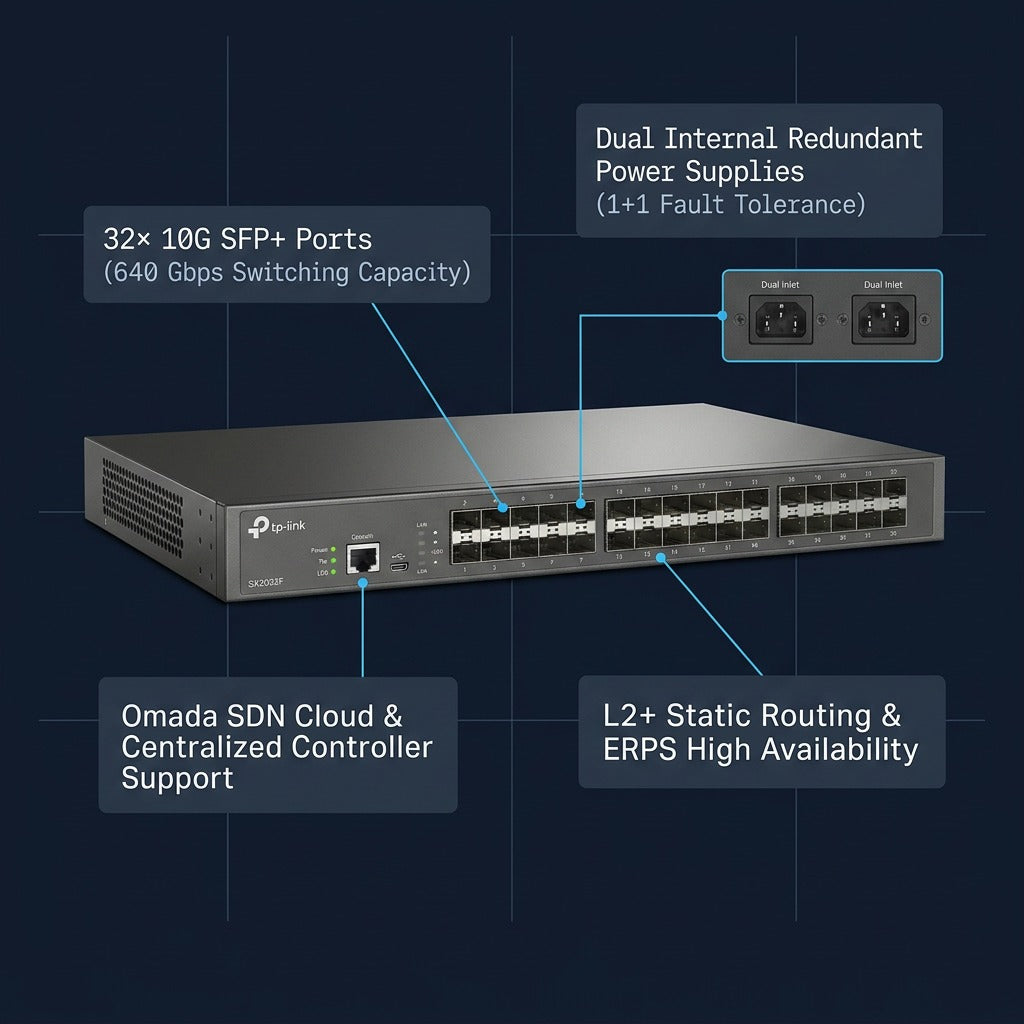

  • Feature callout diagram of TP-Link SX3032F 32-port 10GE SFP+ L2+ managed switch with dual power.

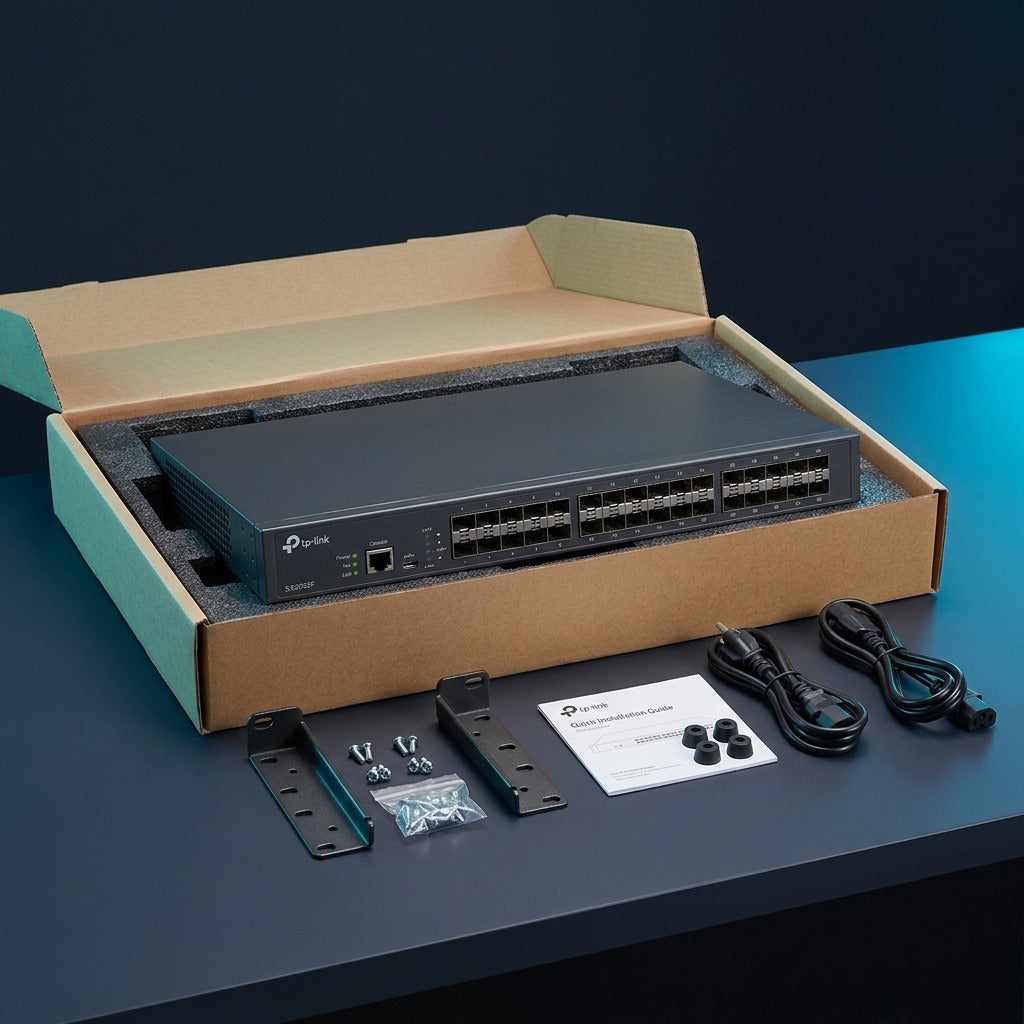

  • TP-Link SX3032F switch in open box packaging with rackmount ears, power cables, and accessories.
  • TP-Link SX3032F 32-Port 10GE SFP+ switch infographic highlighting specs and shipping benefits.
  • TP-Link SX3032F 32-port 10G SFP+ managed network rackmount switch with front console ports
  • Scale reference of the TP-Link SX3032F switch beside a laptop, tape measure, and rack mount rail.
  • Macro detail of SFP+ optical ports and metallic cages on a TP-Link SX3032F switch panel.
  • IT engineer connecting fiber optic cables to a TP-Link SX3032F switch in a data center rack.
  • Multi-angle view of TP-Link SX3032F switch showing front ports, rear power inputs, and rack ears.
  • Feature callout diagram of TP-Link SX3032F 32-port 10GE SFP+ L2+ managed switch with dual power.
  • TP-Link SX3032F switch in open box packaging with rackmount ears, power cables, and accessories.
  • TP-Link SX3032F 32-Port 10GE SFP+ switch infographic highlighting specs and shipping benefits.
TP-Link Omada SX3032F 32-Port 10GE SFP+ L2+ Managed Switch - Dual Power Supplies

TP-Link Omada SX3032F 32-Port 10GE SFP+ L2+ Managed Switch - Dual Power Supplies

$1,299.99
Verified Canadian Stock MPN: SX3032F Form: 1U Rackmount

Eliminate core aggregation bottlenecks with 32 dedicated 10G SFP+ fiber ports and dual redundant power supplies engineered for zero-downtime networks.

The TP-Link Omada SX3032F provides enterprise-tier 640 Gbps switching capacity and high-density 10-Gigabit fiber aggregation, allowing you to interconnect distribution switches, NAS appliances, and server nodes without latency or port starvation.

Operational Advantages for Infrastructure Deployments

32× 10G SFP+ Aggregation

Consolidate your entire network backbone onto a non-blocking 640 Gbps switching matrix capable of 476.16 Mpps throughput for multi-gigabit access networks.

1+1 Internal Redundant Power

Dual integrated AC power supplies deliver hardware fault tolerance directly inside the 1U steel chassis, preventing catastrophic core outages during circuit failures.

Omada SDN Centralized Control

Deploy, configure, and monitor your switches from a centralized Cloud or on-premises controller with zero-touch provisioning and multi-site configuration.

L2+ Routing & High Availability

Offload Layer 3 traffic with IPv4/IPv6 static routing and build sub-50ms self-healing ring topologies using Ethernet Ring Protection Switching (ERPS).

Technical Specification Matrix

Parameter Hardware Specification
Interface Count 32× 10G/1G SFP+ Slots, 1× RJ45 Console, 1× Micro-USB Console
Switching Bandwidth 640 Gbps non-blocking; 240 Mpps to 476.16 Mpps forwarding rate
Packet Buffer & MAC 24 Mbit Packet Buffer, 32K MAC Address Table, 9 KB Jumbo Frame
Power Subsystem Dual internal fixed redundant power supplies (100–240 V AC, 50/60 Hz, 49.4W max)
Layer 2+ Capabilities Static Routing (48 routes), 4K VLANs, QinQ, ERPS, IGMP Snooping, 802.1X, ACL L2-L4
Management Modes Omada SDN Controller (Cloud/Hardware/Software), Web GUI, CLI (Console/Telnet/SSH), SNMP v1/v2c/v3
Chassis Dimensions 1U 19-inch rack-mountable steel enclosure (440 × 330 × 44 mm)

Optics & Module Compatibility Context

The SX3032F interfaces with standard MSA-compliant 10GBASE-SR, LR, ER, and ZR optical transceivers, standard 1000BASE-X SFP modules, and passive or active 10G Direct Attach Copper (DAC) SFP+ cables. Digital Diagnostic Monitoring (DDM) provides real-time optical link telemetry across all 32 ports.

Verified Canadian Fulfillment & Dispatch

Orders placed by 2:00 PM EST qualify for same-day processing with fast, duty-free shipping across Canada from local warehouses. Every unit ships factory-sealed with standard 19-inch rackmount brackets and AC power cords included.

  • Same-Day Processing < 2:00 PM EST
  • Duty-Free Canadian Fulfillment
  • Exact MPN: SX3032F Guaranteed
  • Standard 30-Day B2B Return Terms
