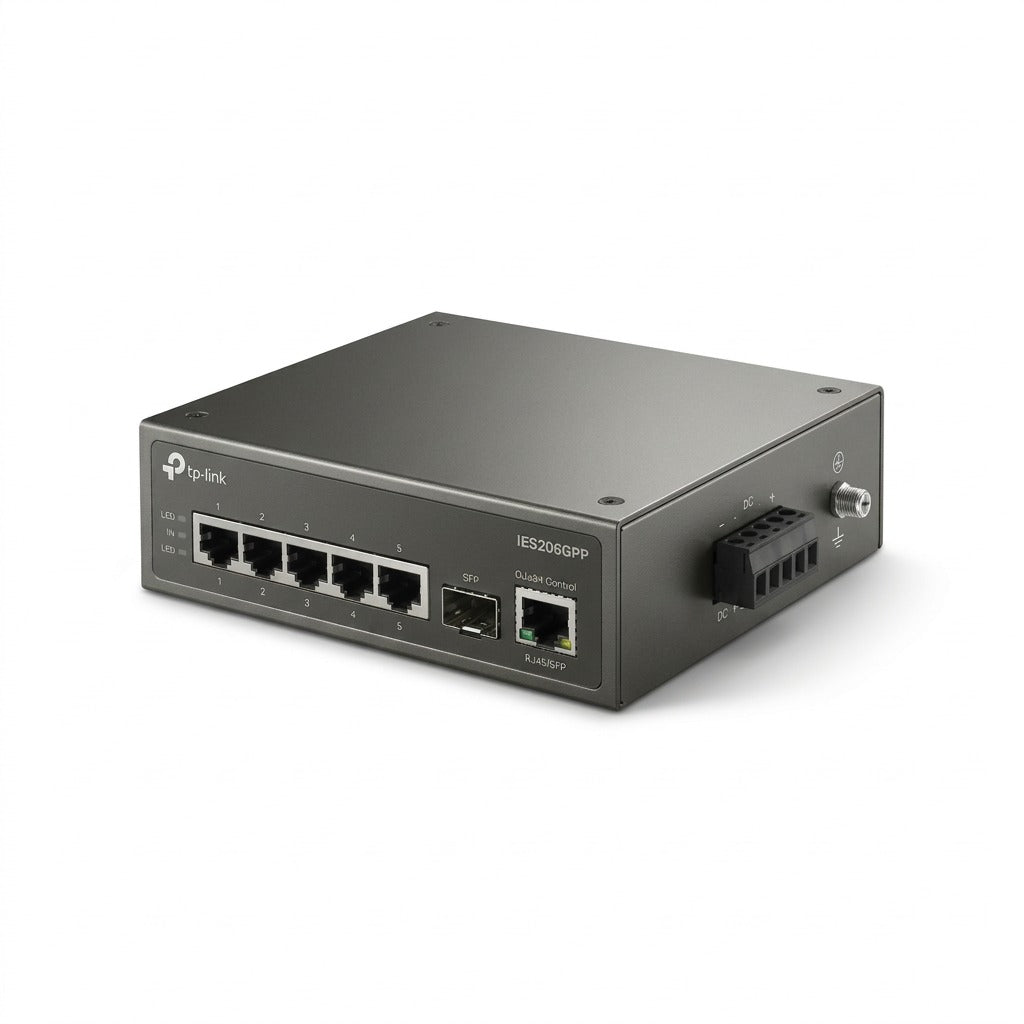

TP-Link Omada Industrial Managed Switch - 6-Port Gigabit with 60W PoE++ and Dual DC Input (IES206GPP)
TP-Link Omada Industrial Managed Switch - 6-Port Gigabit with 60W PoE++ and Dual DC Input (IES206GPP)
Deploy hardened Gigabit connectivity in severe conditions. Power high-draw PTZ cameras and perimeter hardware with up to 60W 802.3bt PoE++ while sustaining continuous operation from -40°C to 75°C.
Industrial Infrastructure Performance
The TP-Link Omada IES206GPP is engineered for unconditioned environments where commercial switches fail. Featuring an IP40-rated fanless aluminum casing and dual redundant DC power inputs, you get zero moving parts and predictable uptime across factory floors, outdoor NEMA enclosures, and remote utility installations.

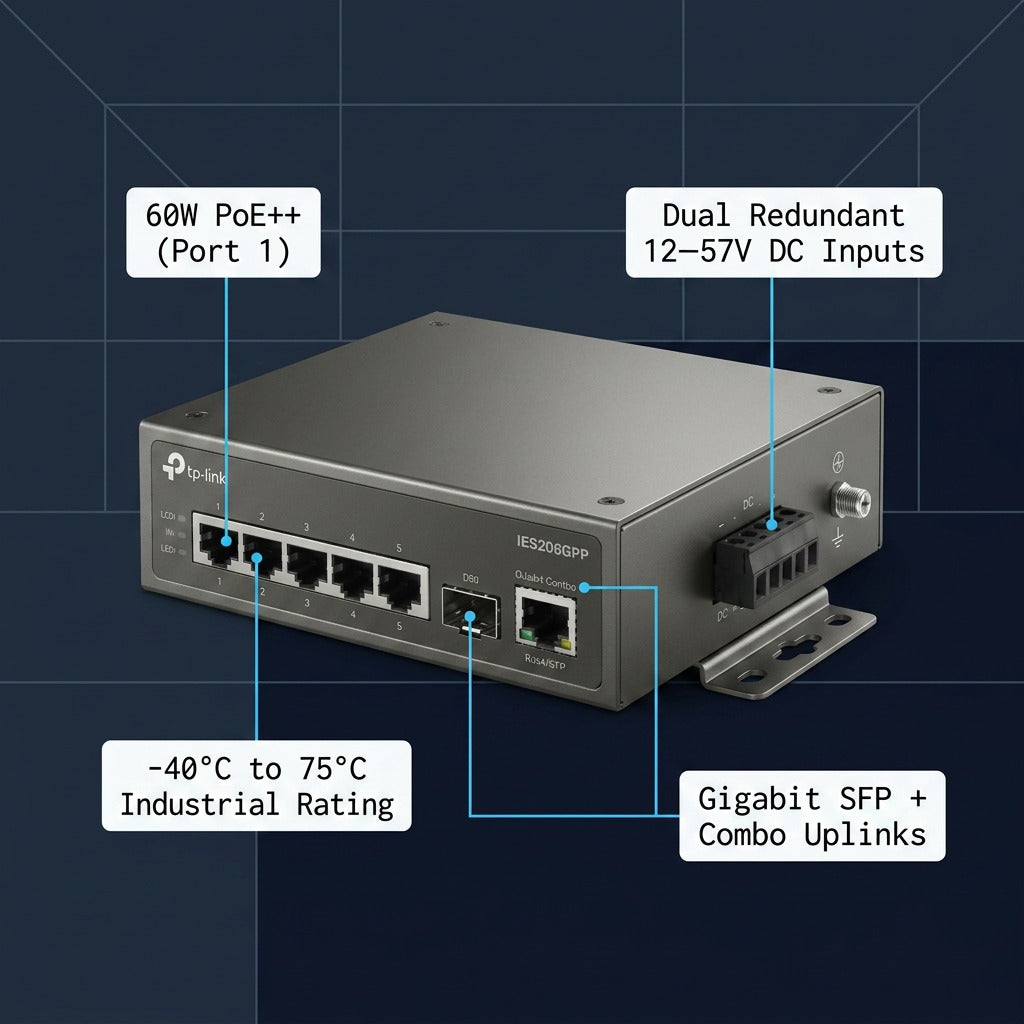

Port 1 delivers 802.3bt Type 3 PoE (up to 60W), eliminating separate high-voltage lines for PTZ cameras and high-output IP audio endpoints.
Extend Ethernet and PoE delivery up to 250 metres (820 ft) at 10 Mbps for remote perimeter sensors and distant surveillance poles.
Withstands 6 kV surge protection on RJ45 ports and ±8 kV ESD contact/air discharge to protect the network from field electrical strikes.

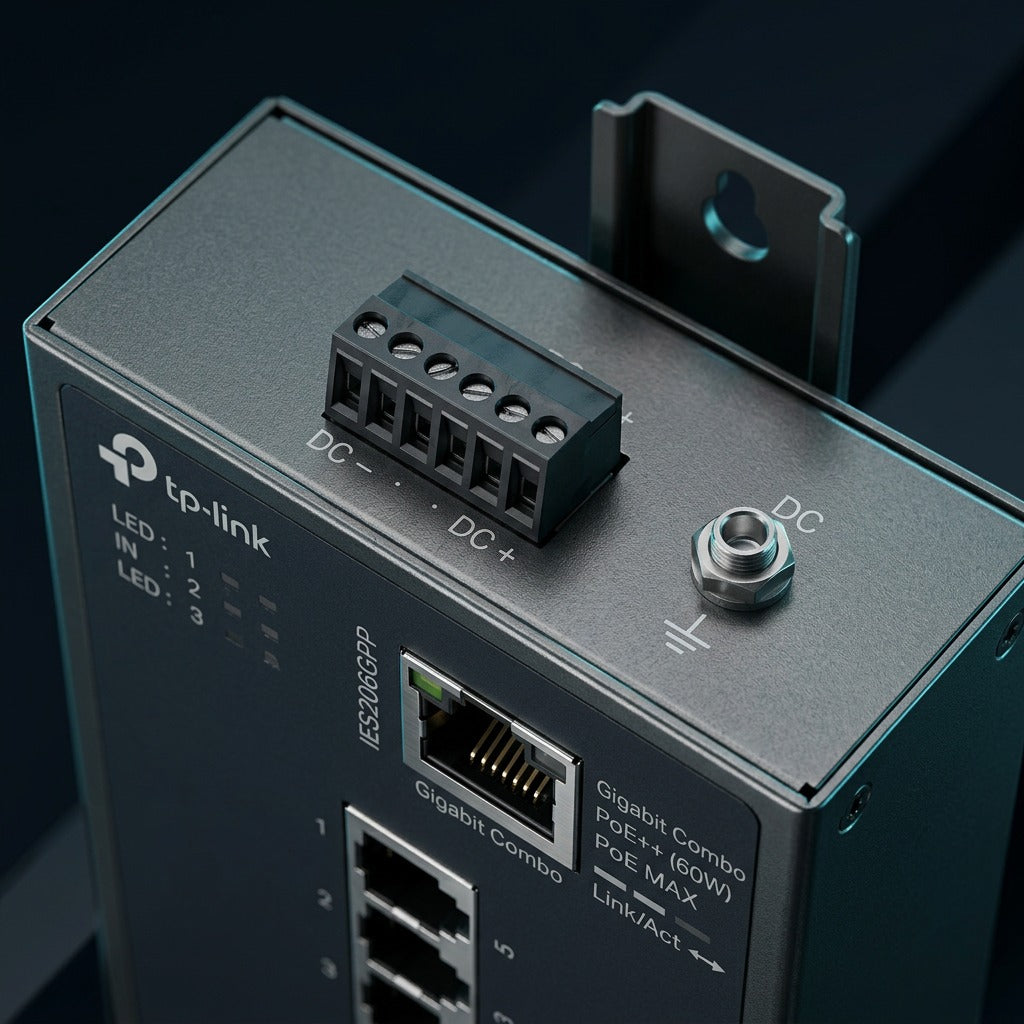

Dual 12–57 VDC inputs maintain continuous operations through power source failover and trigger the built-in alarm relay upon faults.
Technical Specification Matrix
| Parameter | Hardware Specification |
|---|---|
| Interface Count | 4x GbE RJ45 (1x PoE++, 3x PoE+), 1x GbE SFP, 1x Combo RJ45/SFP |
| PoE Standards & Budget | 802.3bt Type 3 / at / af | Up to 120W (60W @ 12-21V, 120W @ 21-57V) |
| Switching & Forwarding | 12 Gbps non-blocking capacity | 8.93 Mpps forwarding rate |
| L2 Feature Suite | 802.1Q VLAN (4K VIDs), STP/RSTP, IGMP Snooping v1/v2/v3, QoS, LAG |
| Centralized Management | Omada Hardware/Software/Cloud Controller or Standalone Web GUI |

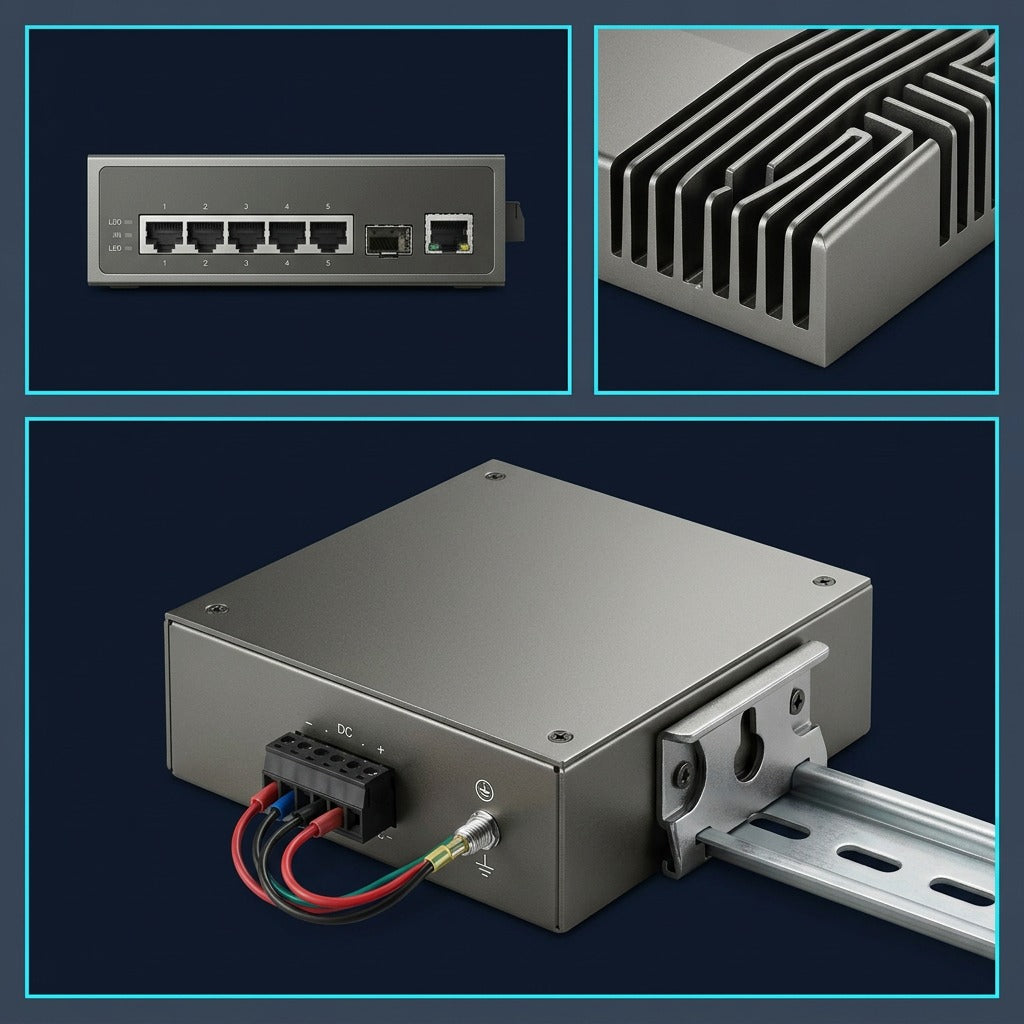

| Form Factor & Ingress | DIN-Rail & Wall Mountable | IP40 Anodized Aluminum Alloy (Fanless) |
| Operating Range | -40°C to 75°C (-40°F to 167°F) | 5% to 95% non-condensing |
| Power Input Specs | Dual 12–57 VDC Terminal Block (External PSU required, not included) |
Deployment & Operational Compatibility
- Power Supply Requirements: Requires an external industrial 12–57V DC power supply matched to your desired PoE load.
- Uplink Flexibility: Dedicated SFP slot plus combo RJ45/SFP port allow seamless long-range optical fiber backhaul integration.

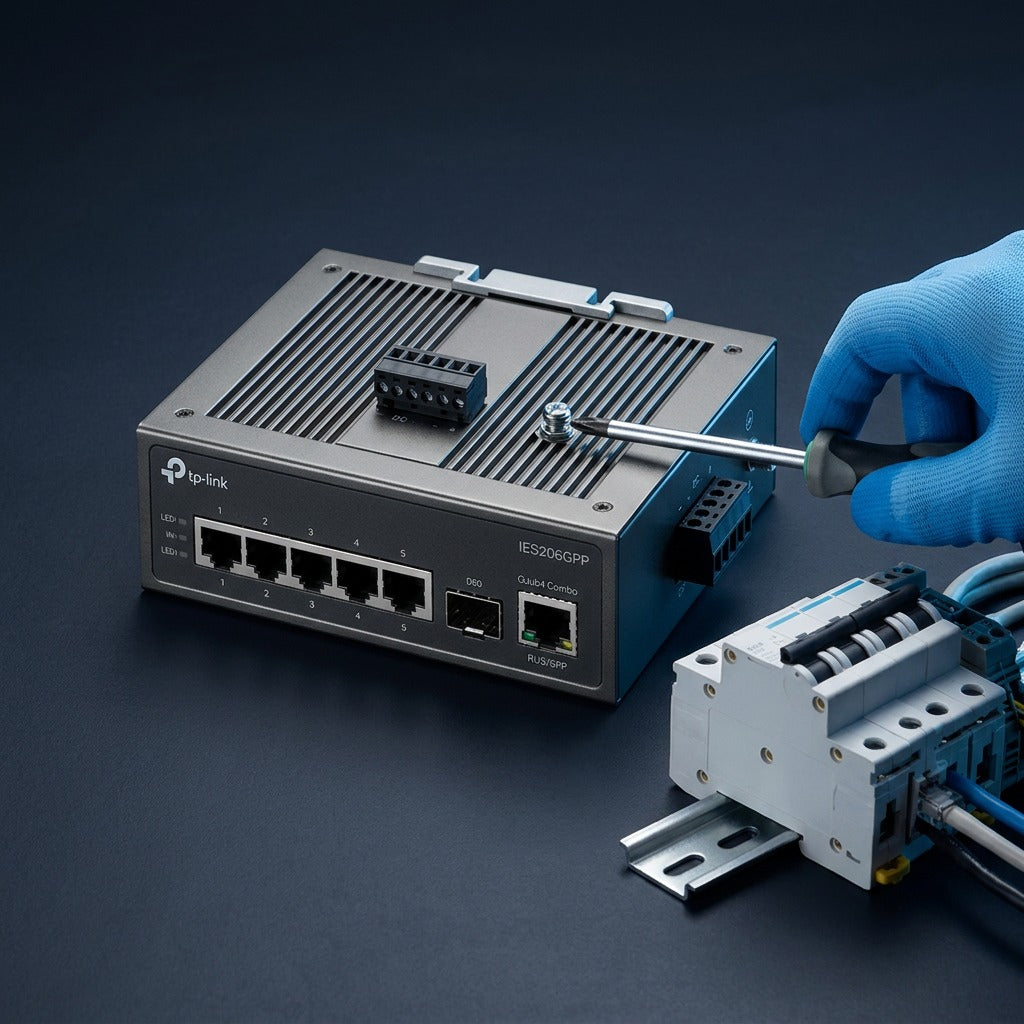

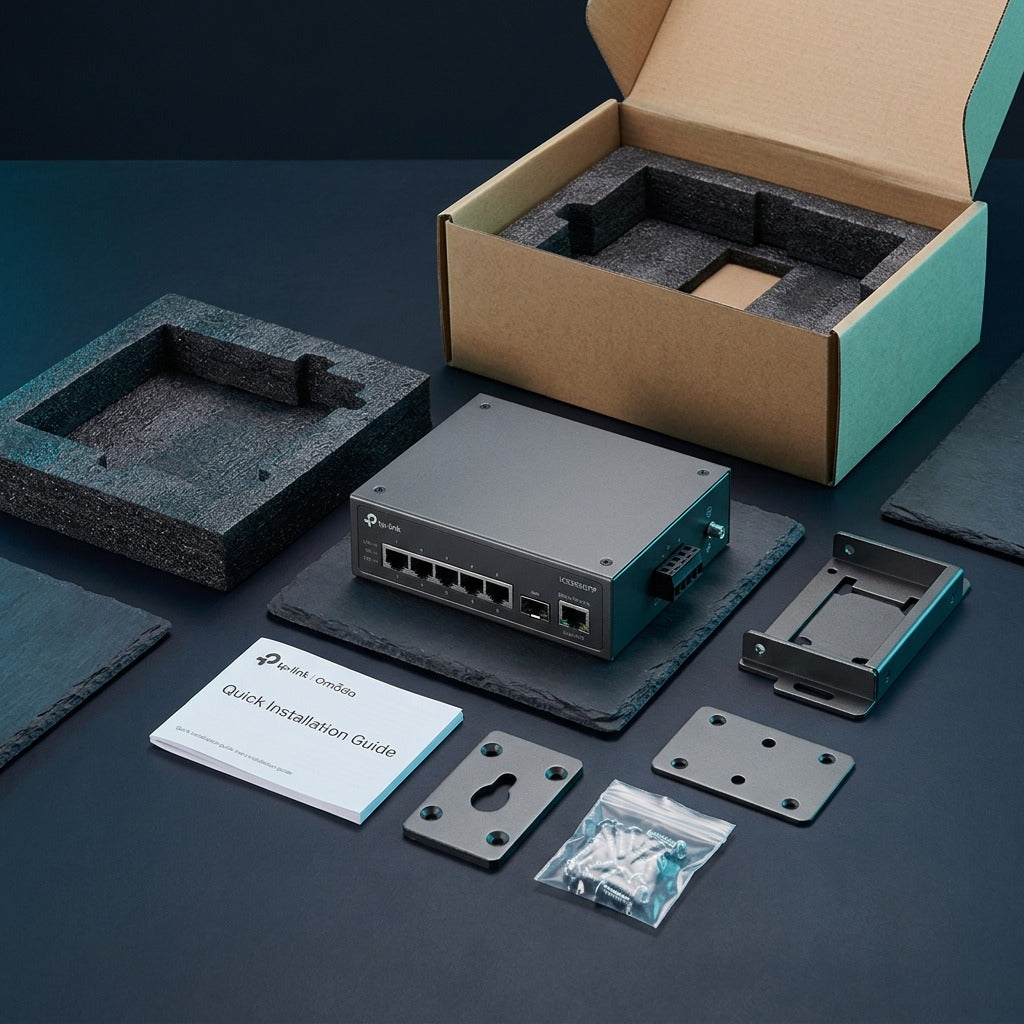

- Mounting Hardware: Standard DIN-rail bracket and low-profile wall-mount plates are included in the box for rapid cabinet deployment.
- Unified Management: Configure locally via standalone web interface or provision alongside site access points using the Omada SDN platform.
