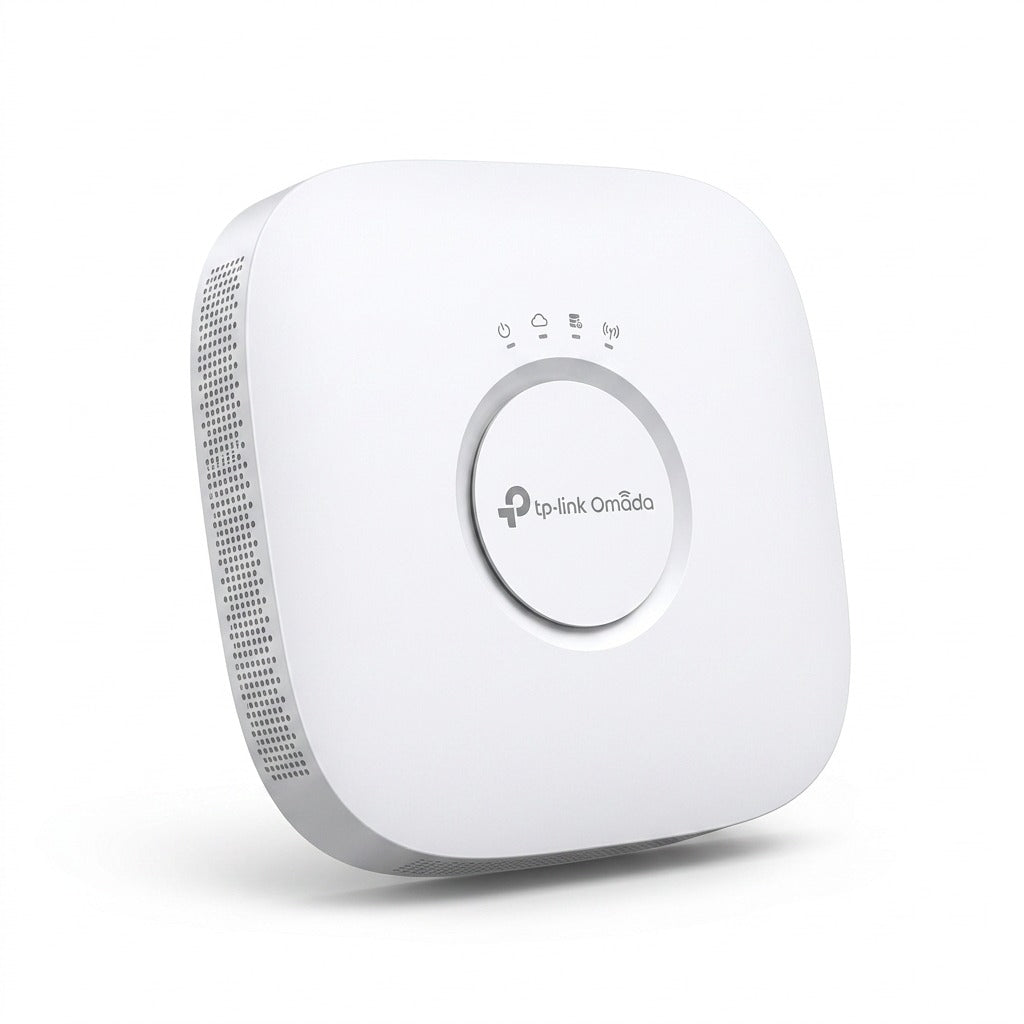

TP-Link Omada EAP783 Wi-Fi 7 ceiling mount access point in white with status LED indicator icons
  • TP-Link Omada EAP783 Wi-Fi 7 ceiling mount access point in white with status LED indicator icons

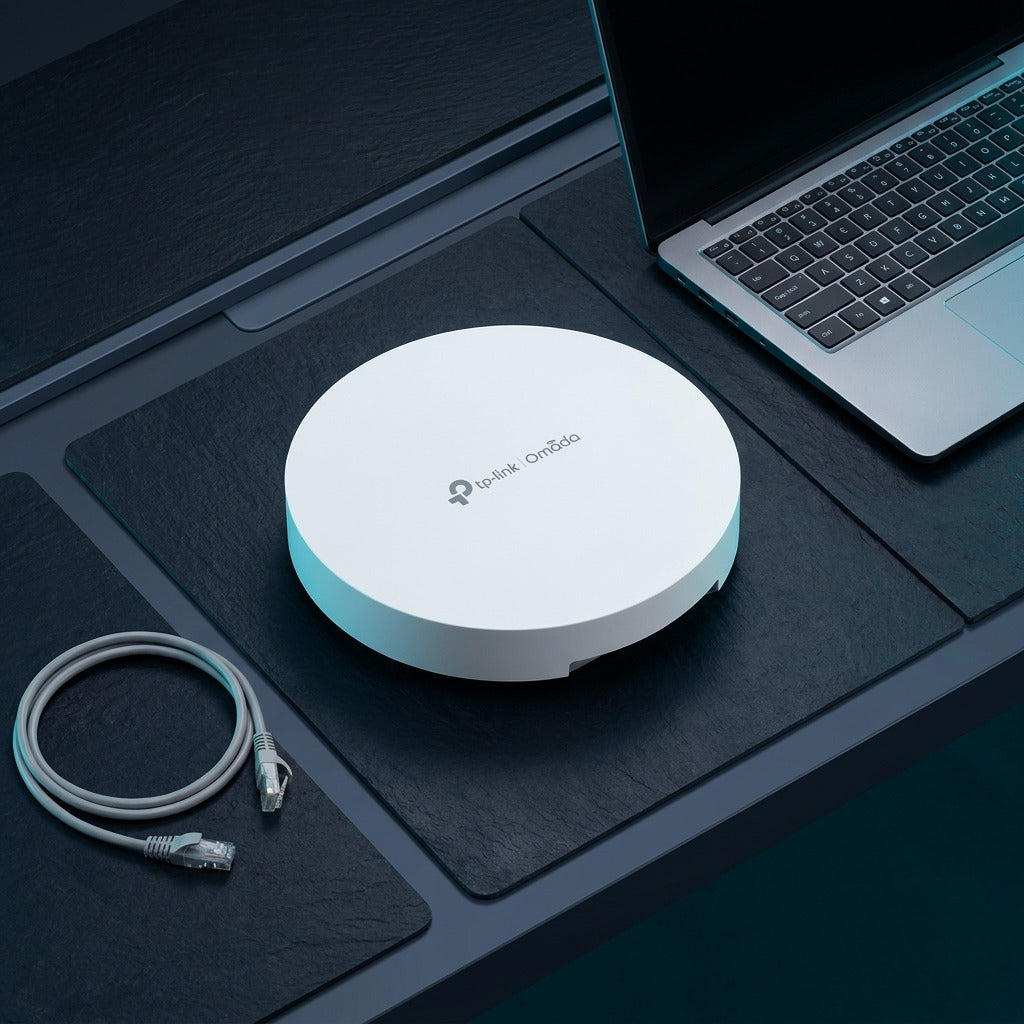

  • White TP-Link Omada Wi-Fi 7 access point on a dark workbench next to a laptop and ethernet cable.

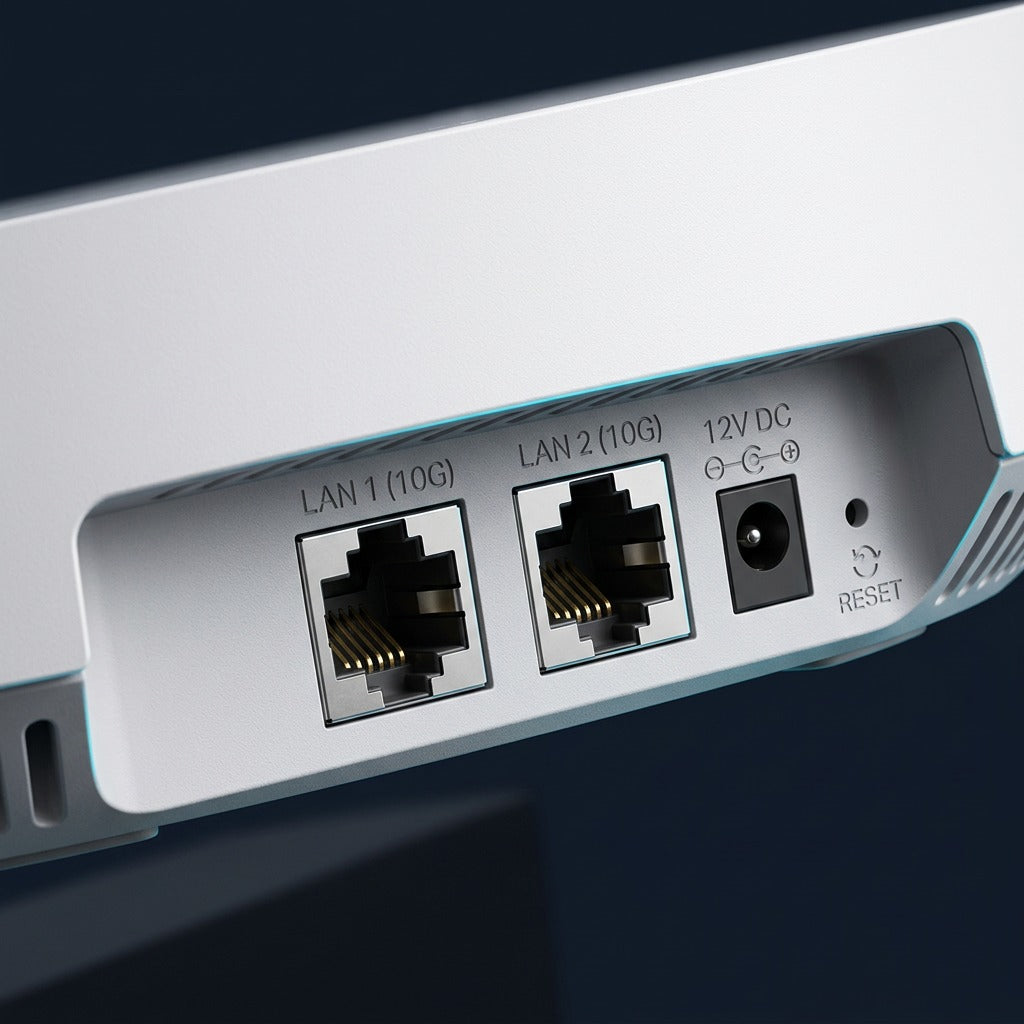

  • Close-up of TP-Link Omada EAP783 access point rear ports: dual 10G LAN, 12V DC jack, and reset button.

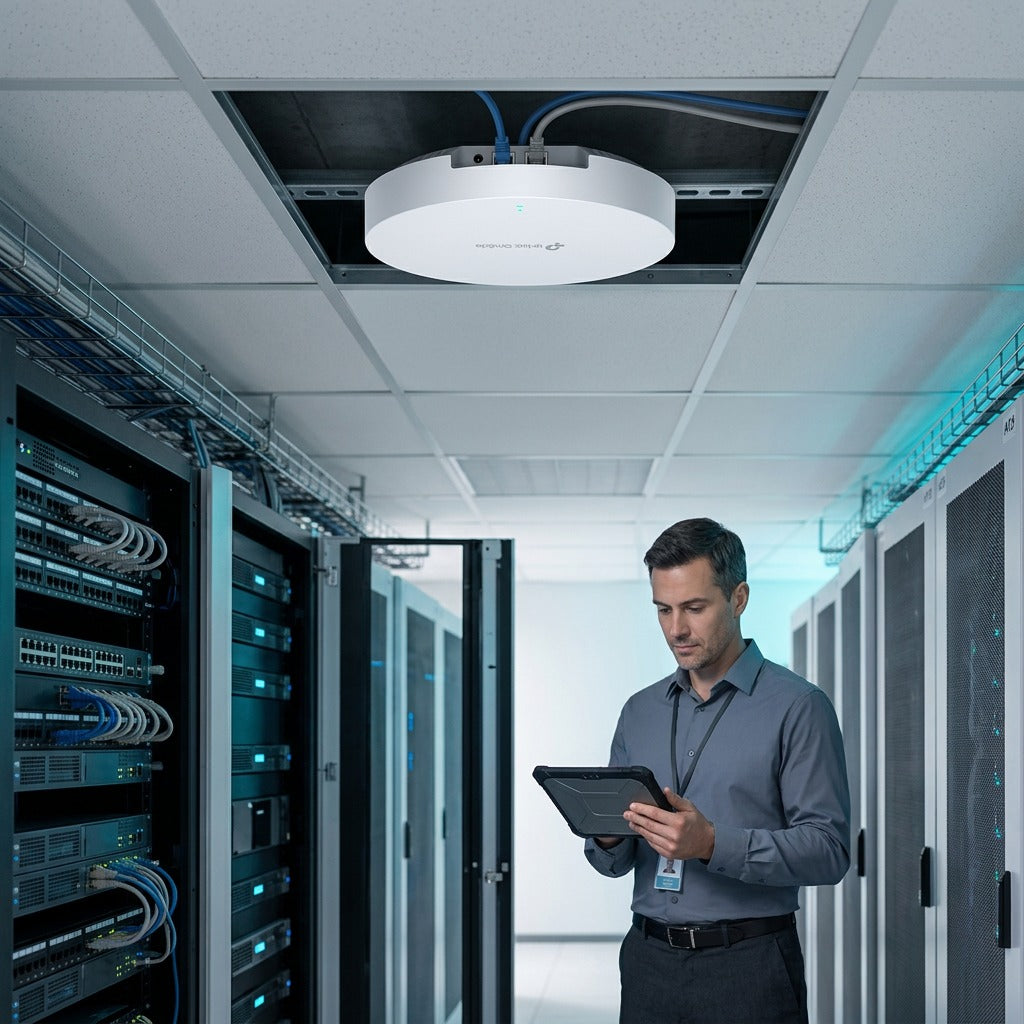

  • TP-Link Omada ceiling-mounted Wi-Fi 7 access point installed in a server room with an IT technician.

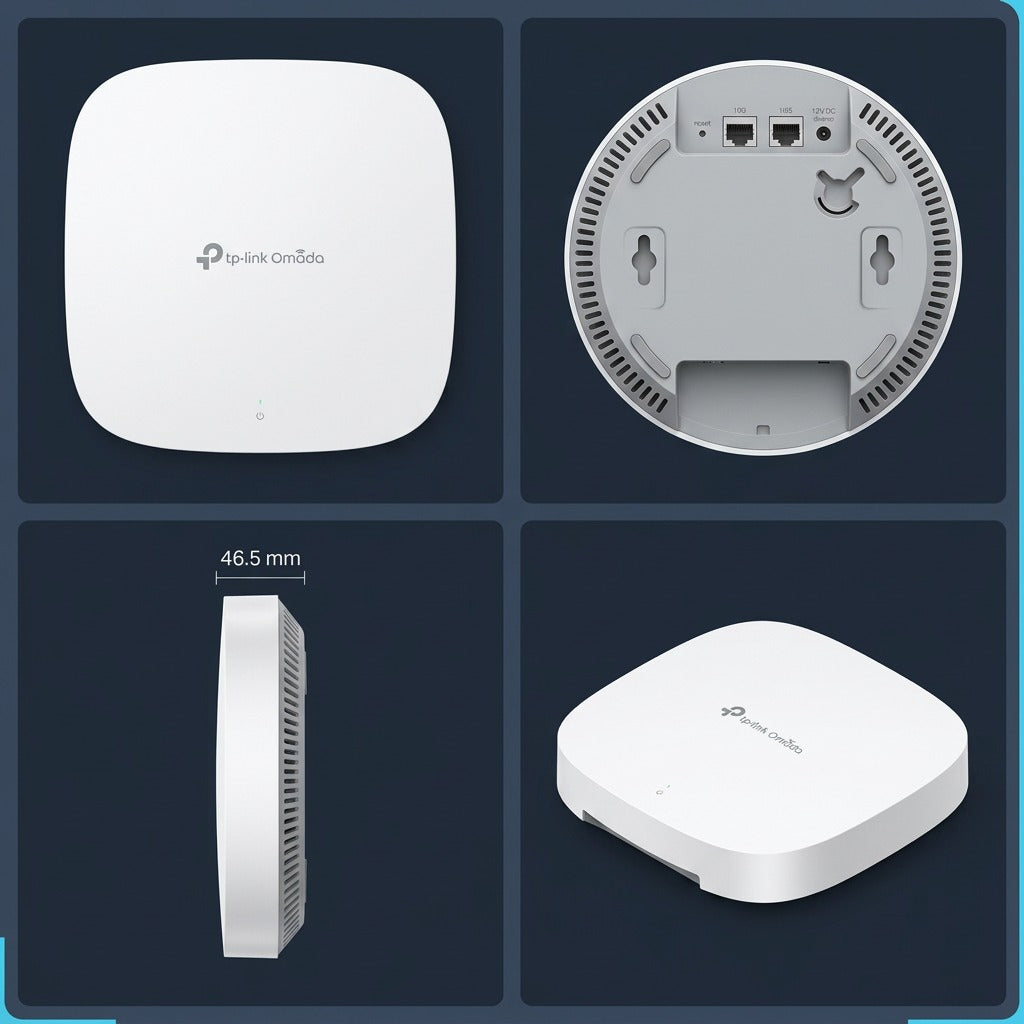

  • Multi-angle views of the TP-Link Omada EAP783 Wi-Fi 7 access point, including ports and profile.

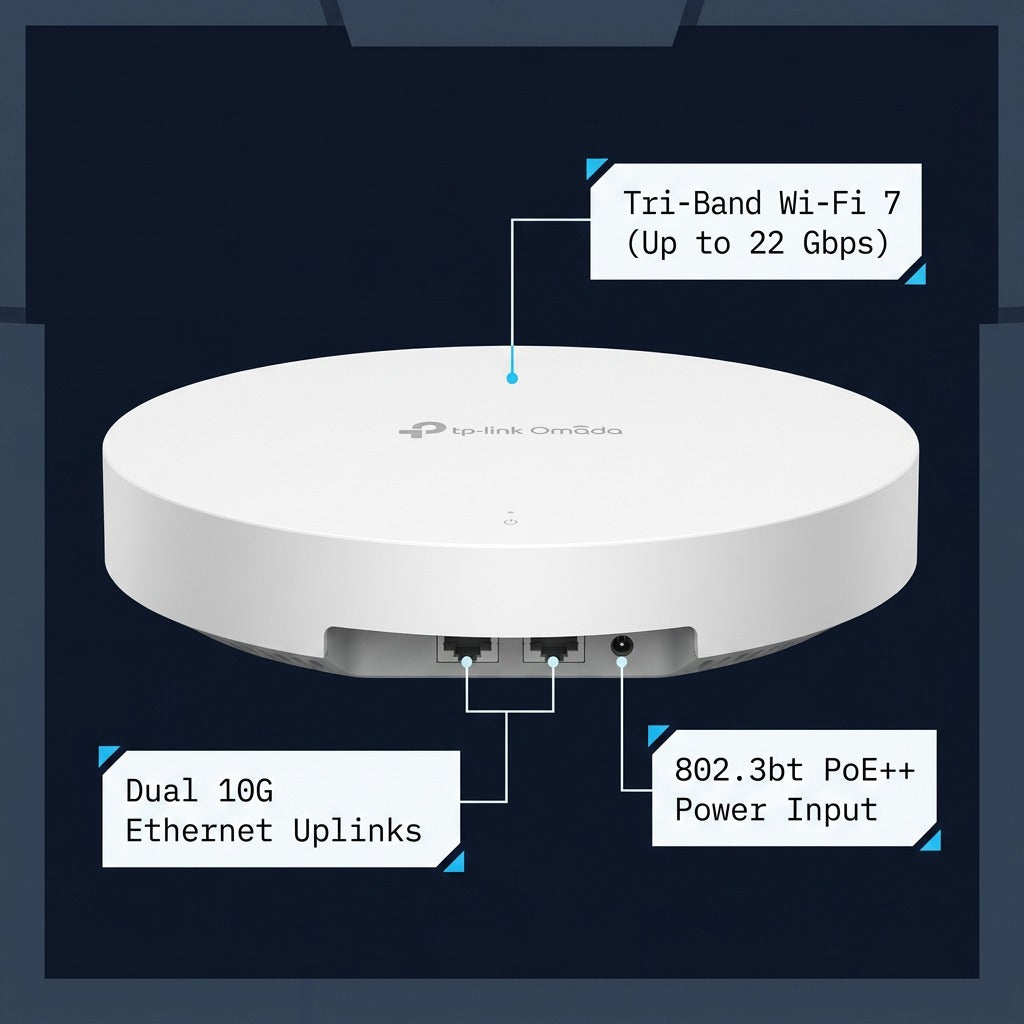

  • Feature callout of TP-Link Omada Wi-Fi 7 access point showing dual 10G ports and PoE++ power input.

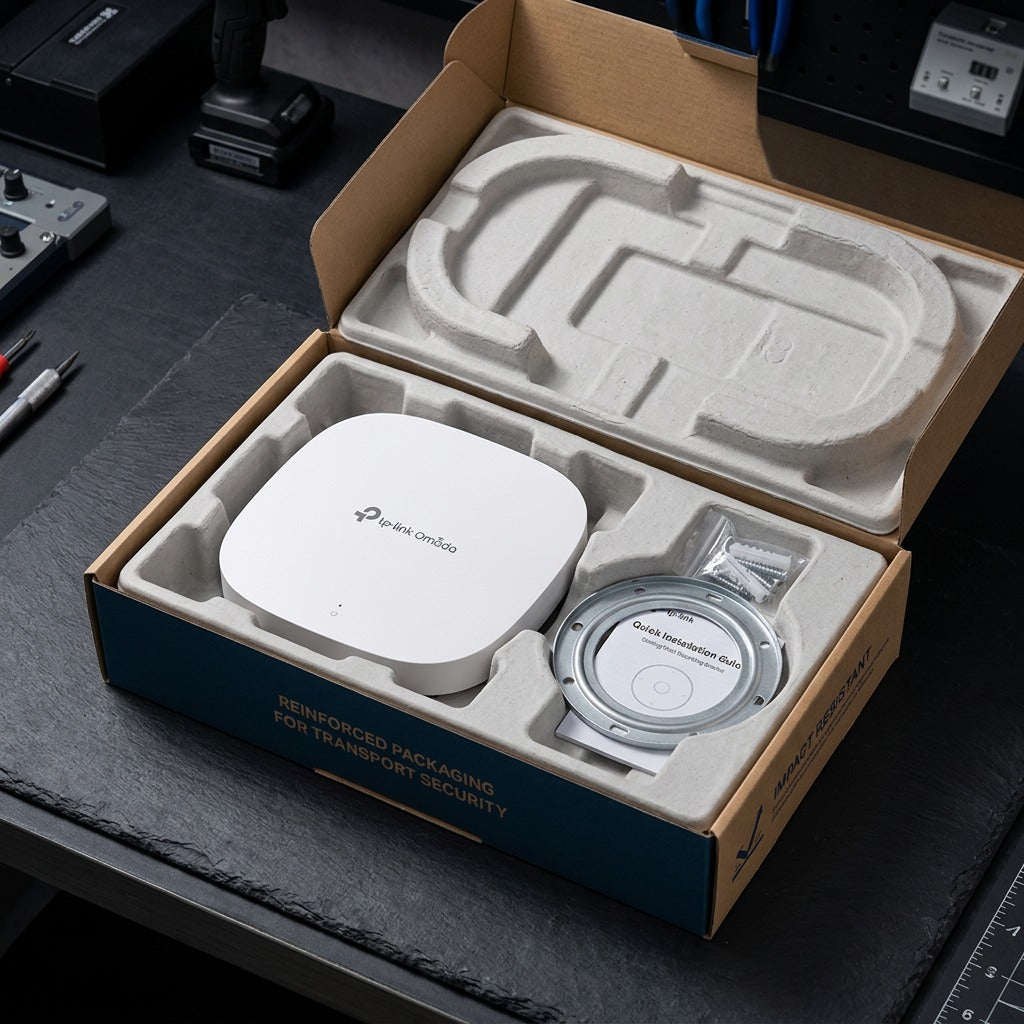

  • Open box showing the TP-Link Omada Wi-Fi 7 access point with mounting hardware in protective packaging.
  • TP-Link Omada BE22000 EAP783 Wi-Fi 7 access point surrounded by Canadian shipping trust icons.
  • TP-Link Omada EAP783 Wi-Fi 7 ceiling mount access point in white with status LED indicator icons
  • White TP-Link Omada Wi-Fi 7 access point on a dark workbench next to a laptop and ethernet cable.
  • Close-up of TP-Link Omada EAP783 access point rear ports: dual 10G LAN, 12V DC jack, and reset button.
  • TP-Link Omada ceiling-mounted Wi-Fi 7 access point installed in a server room with an IT technician.
  • Multi-angle views of the TP-Link Omada EAP783 Wi-Fi 7 access point, including ports and profile.
  • Feature callout of TP-Link Omada Wi-Fi 7 access point showing dual 10G ports and PoE++ power input.
  • Open box showing the TP-Link Omada Wi-Fi 7 access point with mounting hardware in protective packaging.
  • TP-Link Omada BE22000 EAP783 Wi-Fi 7 access point surrounded by Canadian shipping trust icons.
TP-Link Omada BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point EAP783

TP-Link Omada BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point EAP783

$699.99
CA-STOCK VERIFIED MPN: EAP783 UPC: 840030710070

Deploy next-generation Wi-Fi 7 enterprise connectivity with aggregated wireless speeds up to 22 Gbps and dual 10 Gbps Ethernet uplinks to eliminate high-density traffic bottlenecks across your commercial infrastructure.

Infrastructure Performance Overview

The TP-Link Omada EAP783 is engineered for high-density corporate environments, multi-tenant offices, and demanding campus networks. By utilizing simultaneous tri-band operation (6 GHz, 5 GHz, and 2.4 GHz) alongside 320 MHz channel width and Multi-Link Operation (MLO), this ceiling-mount access point allows connected clients to send and receive data across multiple bands concurrently, maximizing throughput while significantly reducing latency.

Tri-Band BE22000 Speeds

Delivers up to 11520 Mbps on 6 GHz (320 MHz), 8640 Mbps on 5 GHz (160 MHz), and up to 1376 Mbps on 2.4 GHz using 4096-QAM modulation.

Dual 10G Ethernet Ports

Equipped with two 10 Gbps RJ45 interfaces with link aggregation support to eliminate wired backhaul saturation from multi-gigabit Wi-Fi 7 traffic.

802.3bt PoE++ Power Input

Powered via standard 802.3bt PoE++ (up to 39 W consumption) or 12V DC input for clean, single-cable overhead ceiling installations.

High-Density Concurrency

Supports 760+ concurrent active client devices with 4×4 MU-MIMO, DL/UL OFDMA, and coverage footprints up to 200 m² (2,150 sq ft).

Centralized Management & Network Security

Integrate the EAP783 seamlessly into the TP-Link Omada Software-Defined Networking (SDN) ecosystem. Configure, monitor, and provision your access layer across hardware controllers (OC200, OC300), software controllers, or cloud-based controllers with zero-touch provisioning and BLE beaconing support.

  • Enterprise Authentication: WPA3-Personal/Enterprise, 802.1X, PPSK, and Rogue AP detection.
  • Multi-Tenant Segmentation: Up to 24 distinct SSIDs (8 SSIDs per frequency band) with captive portal support.
  • Advanced RF Optimization: Seamless 802.11k/v/r roaming, band steering, load balancing, beamforming, and airtime fairness.
  • Standalone Management Options: Local Web GUI, Omada Mobile App, SNMP (v1/v2c/v3), SSH, and CLI.

Engineering Specifications Matrix

Manufacturer Part Number EAP783
Wireless Standard IEEE 802.11be/ax/ac/n/g/b/a (Wi-Fi 7)
Ethernet Interfaces 2 × 10G / 10 Gbps RJ45 Ports (100M/1G/2.5G/5G/10G auto-negotiation)
Antenna Architecture 8 × Internal Omni-directional Antennas (4×4 dBi on 2.4 GHz, 4×5.5 dBi on 5 GHz, 4×5 dBi on 6 GHz)
Power Method 802.3bt PoE++ or 12V DC (Max consumption: 39 W; DC power adapter not included)
Physical Dimensions 280 × 280 × 46.5 mm (11.0 × 11.0 × 1.8 in) • Weight: 1384.6 g
Mounting Options Ceiling mount (T-rail ceiling grid kits included) and wall mount bracket
Certifications & Compliance CE, FCC, IC (Industry Canada), RoHS
Fast, Duty-Free Canadian Fulfillment

Orders dispatch directly from local Canadian distribution hubs with deterministic tracking. Fully duty-free shipping across Canada with same-day processing for orders finalized before 2:00 PM EST.
