TP-Link Omada Multi-Gigabit VPN Router - Dual 2.5G & Multi-WAN Load Balancing (ER7412-M2)
TP-Link Omada Multi-Gigabit VPN Router - Dual 2.5G & Multi-WAN Load Balancing (ER7412-M2)
Eliminate Multi-Gigabit WAN Bottlenecks: Deliver unconstrained 2.5G routing throughput, manage up to 11 WAN interfaces with intelligent failover, and support 1,000,000 concurrent sessions across enterprise branch offices.
Engineering-Grade Overview
The TP-Link Omada ER7412-M2 Multi-Gigabit VPN Router is engineered for high-density commercial networks requiring multi-WAN redundancy and high-capacity encrypted tunneling. Powered by a Quad-Core ARMv8 2.0 GHz processor and 1 GB of DDR4 memory, it executes Deep Packet Inspection (DPI) across 2,400+ application classifications without degrading line-rate NAT performance.
Operational Capabilities

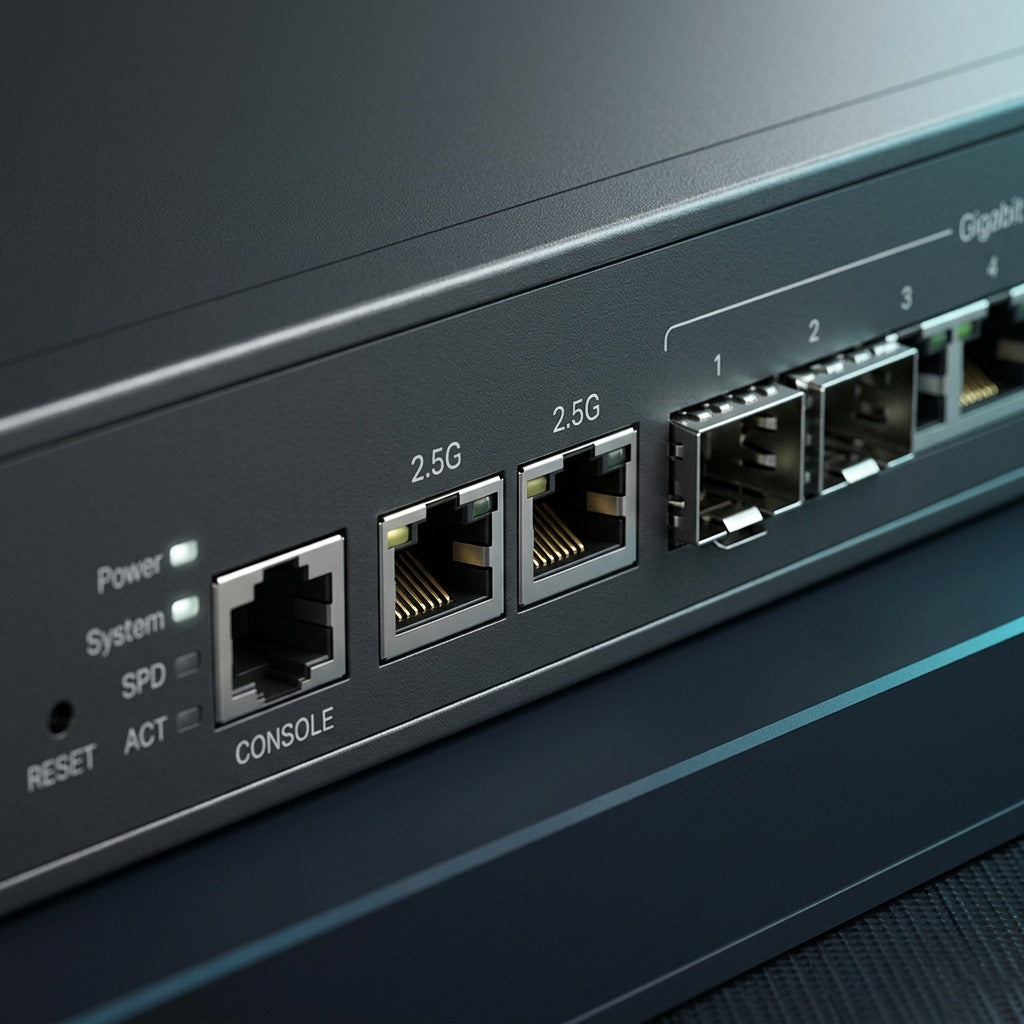

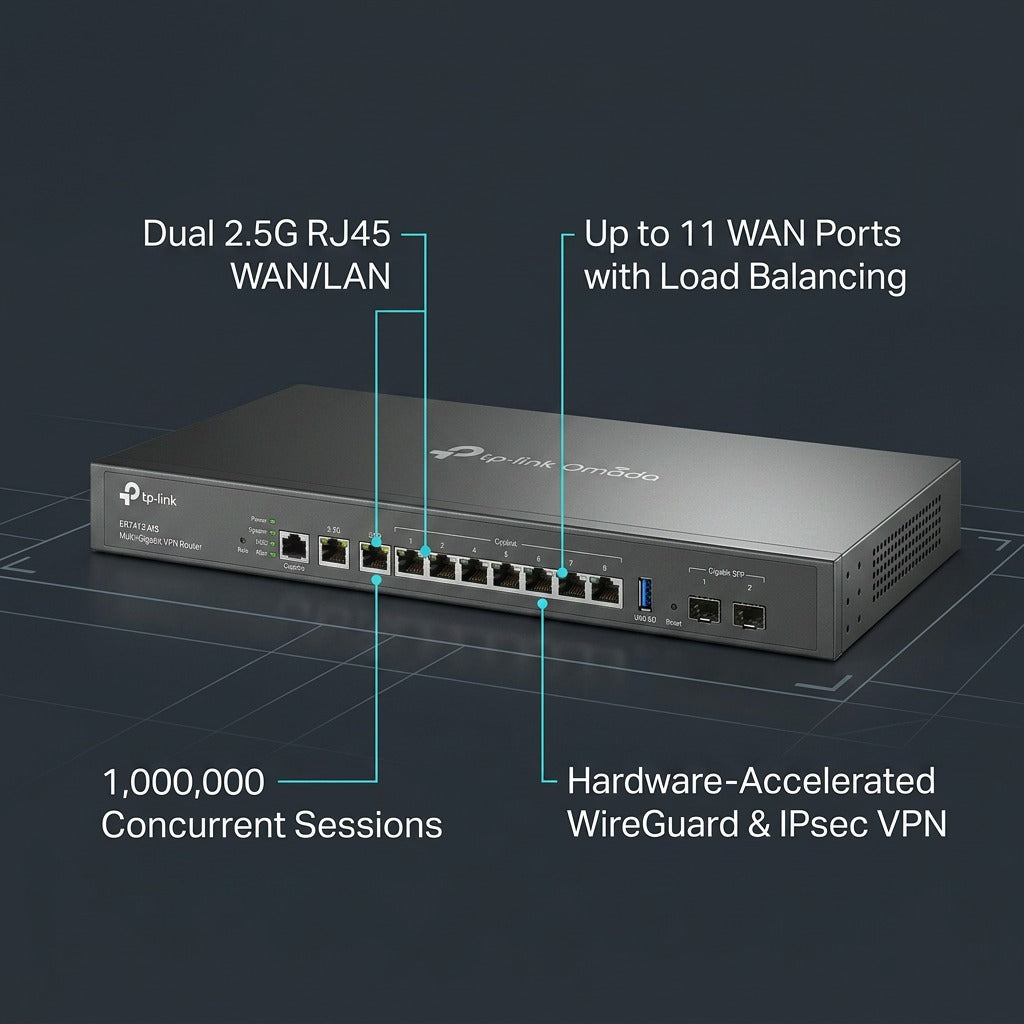

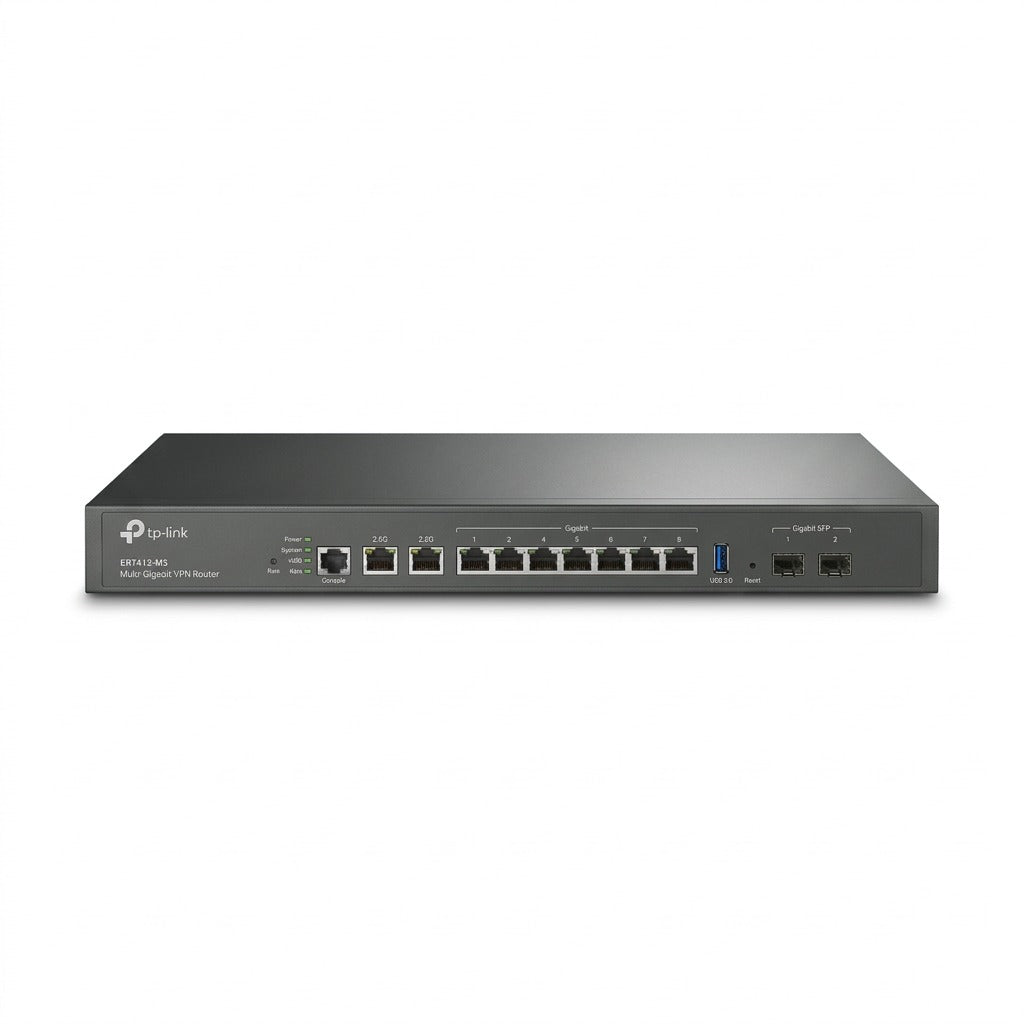

Features 2× 2.5G RJ45 ports, 2× 1G SFP slots, and 8× Gigabit RJ45 ports. Configure up to 11 WAN uplinks with policy routing, load balancing, and 4G LTE USB failover.
Hardware-accelerated IPsec throughput up to 1,133 Mbps (150 tunnels), WireGuard up to 771.6 Mbps (20 tunnels), and SSL/OpenVPN support for secure site-to-site and remote access links.
Integrates directly with the Omada Software, Hardware, or Cloud-Based Controller ecosystem for Zero-Touch Provisioning (ZTP), centralized VLAN configuration, and multi-site orchestration.

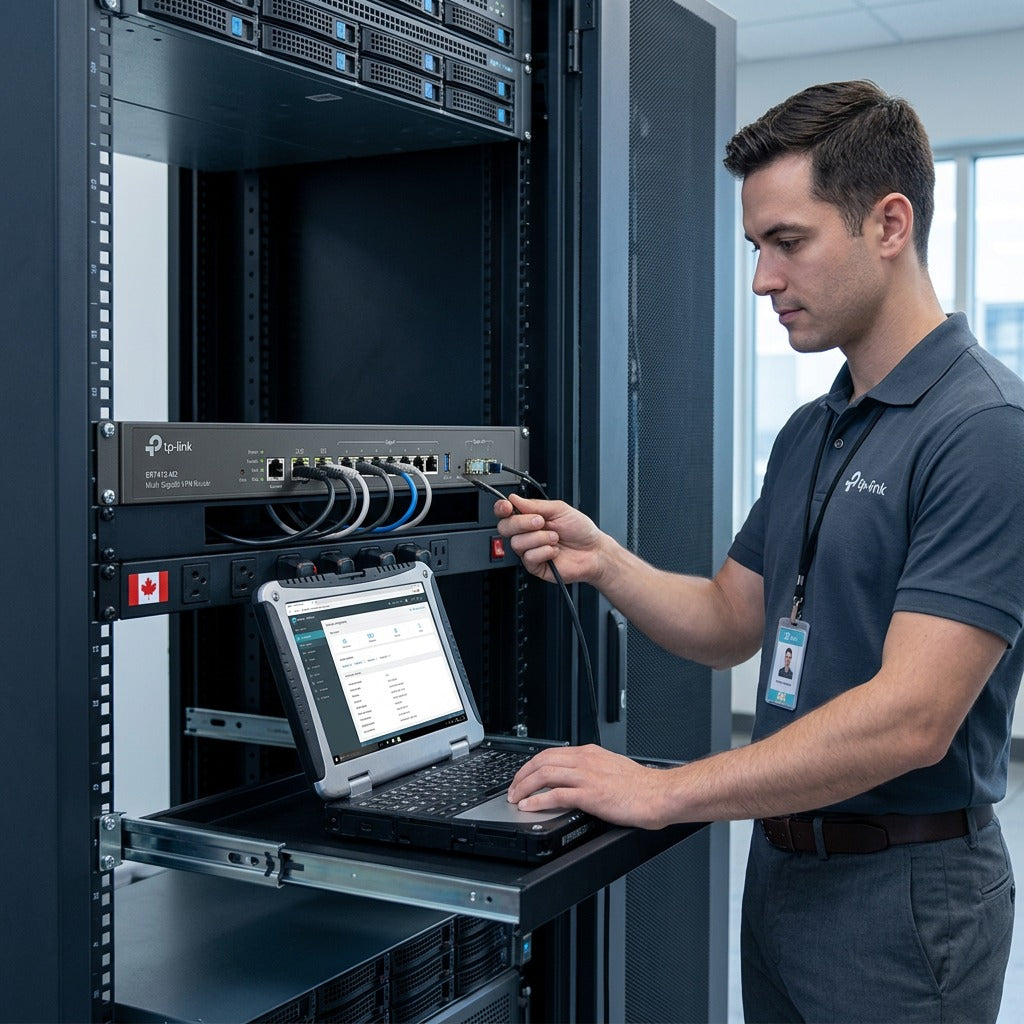

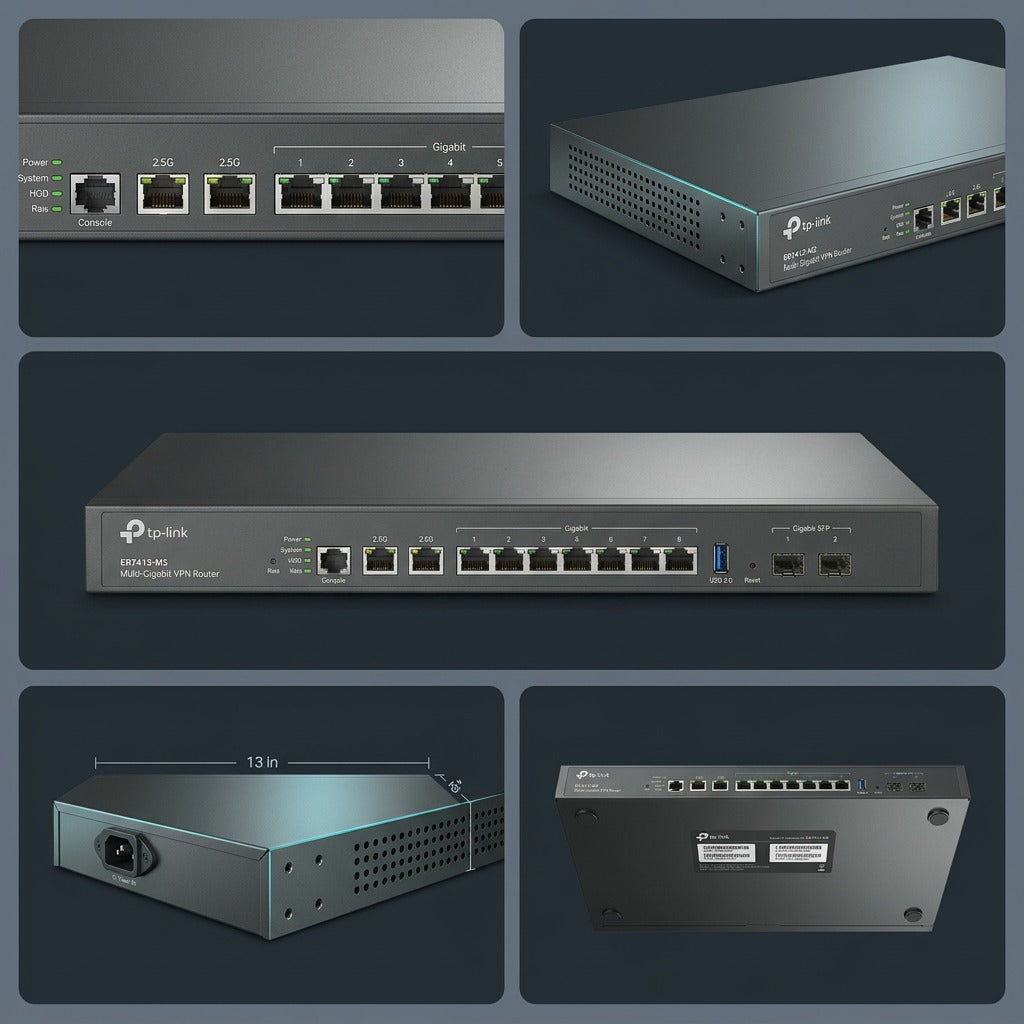

Solid steel 1U 13-inch chassis with included 19-inch mounting brackets, 4 kV surge protection, and an internal 100–240V power supply for standard enterprise server racks.
Verified Technical Specifications
| Processor & RAM | Quad-Core ARMv8 @ 2.0 GHz | 1 GB DDR4 DRAM | 128 MB NAND Flash |
| Network Interfaces | 2× 2.5 Gbps RJ45 (WAN/LAN) | 8× 10/100/1000 Mbps RJ45 (WAN/LAN) | 2× 1 Gbps SFP (WAN/LAN) |
| Auxiliary Ports | 1× USB 3.0 Type-A (Storage / 4G Dongle Backup) | 1× RJ45 Console Port |
| Concurrent Sessions | 1,000,000 sessions (7,000 new sessions/sec) |
| NAT Throughput | 2,345 Mbps (Static IP) | 2,353 Mbps (DHCP) | 2,336 Mbps (PPPoE) |
| VPN Throughput | IPsec: 1,133.1 Mbps | WireGuard: 771.6 Mbps | OpenVPN: 266.2 Mbps | SSL: 263.1 Mbps |
| Security Engines | Signature-based IDS/IPS (573 Mbps) | DPI Engine (2.2 Gbps) | DoS Defense | Stateful Firewall |
| Power & Thermal | Internal 100–240 VAC, 50/60 Hz | 18.5 W Max Draw | 0°C to 45°C Operating Temp |
| Form Factor | 1U 13-inch Desktop/Rackmount Steel Case (294 × 180 × 44 mm) |
Deployment & Compatibility
The ER7412-M2 operates seamlessly in either standalone mode via web UI/CLI/SNMP or fully managed under Omada SDN controllers. It provides multi-net DHCP, Captive Portal, 802.1Q VLAN tagging, and Policy-Based Routing to isolate guest, corporate, and IoT infrastructure.
Canadian Logistics & Fulfillment
- Fast Canadian Shipping: Dispatched from local Canadian warehouses for prompt delivery without import duty or border clearance delays.

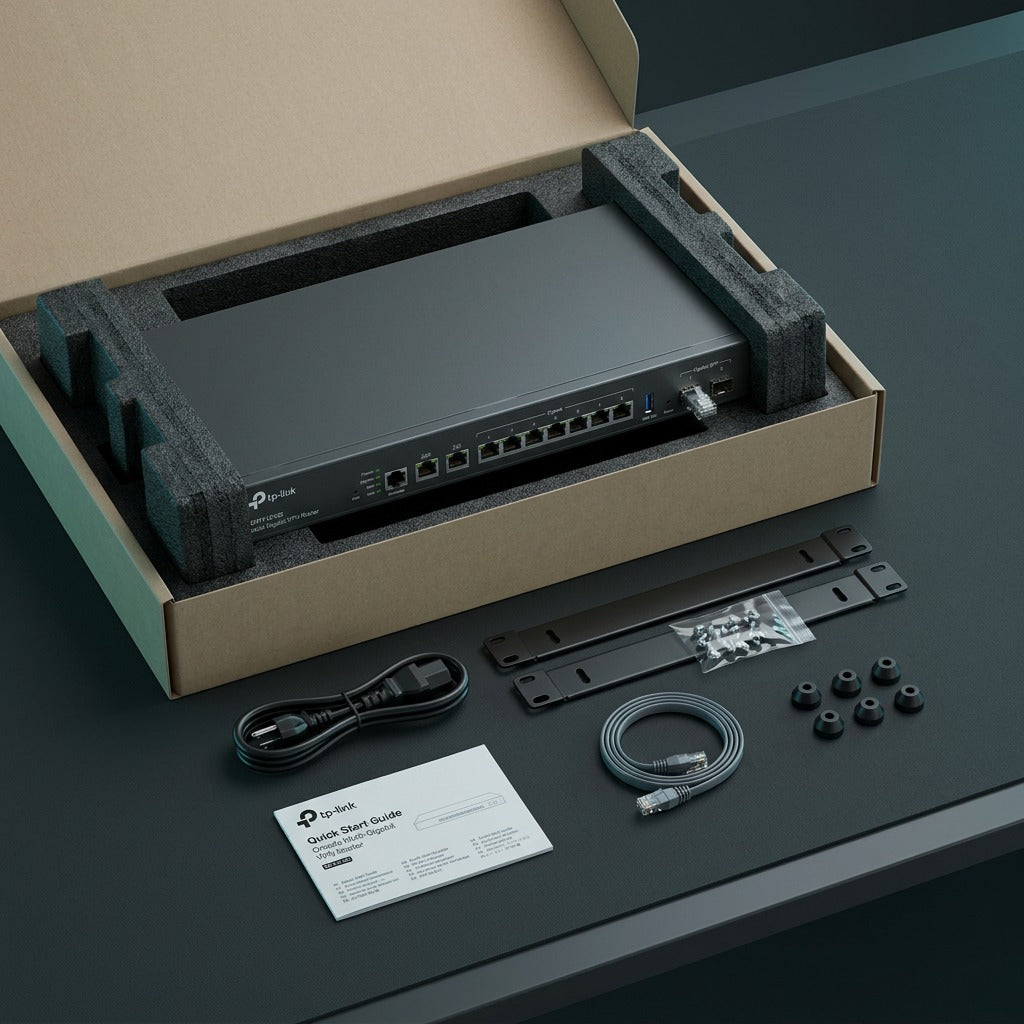

- Complete Package: Includes ER7412-M2 router, AC power cord, 13-inch/19-inch rackmount brackets with hardware, RJ45 console cable, rubber feet, and installation documentation.
- Authenticity Guaranteed: Factory-sealed hardware backed by standard TP-Link manufacturer support.
