TP-Link EAP670 AX5400 Ceiling Mount Wi-Fi 6 Access Point - 2.5 GbE Port & Omada SDN
TP-Link EAP670 AX5400 Ceiling Mount Wi-Fi 6 Access Point - 2.5 GbE Port & Omada SDN
Eliminate wireless bottlenecks in high-density commercial spaces with enterprise-grade AX5400 Wi-Fi 6 speeds, a 2.5G multi-gigabit Ethernet backhaul, and centralized Omada SDN cloud management.
High-Density Performance for Enterprise Deployments
The TP-Link EAP670 delivers dual-band wireless throughput up to 5378 Mbps (4804 Mbps on 5 GHz and 574 Mbps on 2.4 GHz) to handle demanding enterprise environments like offices, hospitality venues, schools, and retail centers. By utilizing 160 MHz channel bandwidth (HE160) along with OFDMA and MU-MIMO technologies, you can connect dozens of concurrent client devices simultaneously without channel congestion or throughput drops.
Equipped with a 2.5 Gigabit Ethernet uplink, this access point unlocks true multi-gigabit performance from your PoE+ switch infrastructure, ensuring high-speed Wi-Fi 6 traffic is never throttled by legacy 1 GbE backhaul limits.
Key Architecture & Network Benefits
⚡ 2.5G Multi-Gigabit Uplink
Bypass legacy gigabit bottlenecks with a dedicated 2.5 Gbps RJ45 port that maximizes Wi-Fi 6 client bandwidth.
🔄 802.11k/v/r Seamless Roaming
Ensure uninterrupted VoIP calls and video conferences as client devices move seamlessly between access points.
🌐 Omada SDN Cloud Integration
Provision, monitor, and manage your entire wireless deployment centrally via cloud GUI, hardware controller, or mobile app.
🔌 Flexible Power Deployment
Power your device cleanly via standard 802.3at PoE+ cabling or use the included 12V / 2A DC power adapter.
Technical Specifications
| Wireless Standards | Wi-Fi 6 (IEEE 802.11ax/ac/n/g/b/a) |
|---|---|
| Speed Ratings | 5 GHz: up to 4804 Mbps (4x4 MIMO) | 2.4 GHz: up to 574 Mbps (2x2 MIMO) |

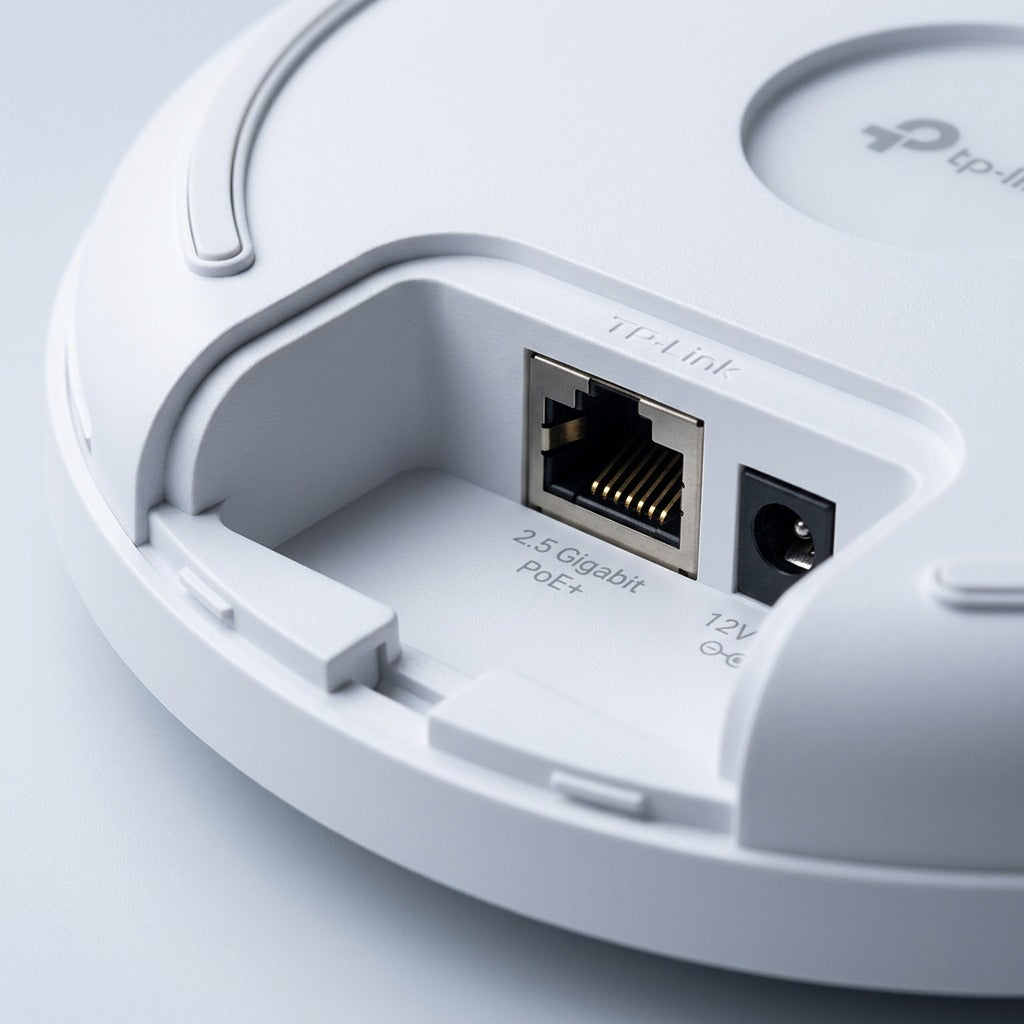

| Network Ports | 1× 2.5 Gbps RJ45 Port (IEEE 802.3at PoE+ compliant) |
| Channel Width | Up to 160 MHz (HE160) |
| Management | Omada SDN Platform (Cloud, Hardware Controller OC200/OC300, Standalone Web GUI) |
| Wireless Security | WPA3-Enterprise, WPA3-Personal, Captive Portal, 16 SSIDs (8 per band) |

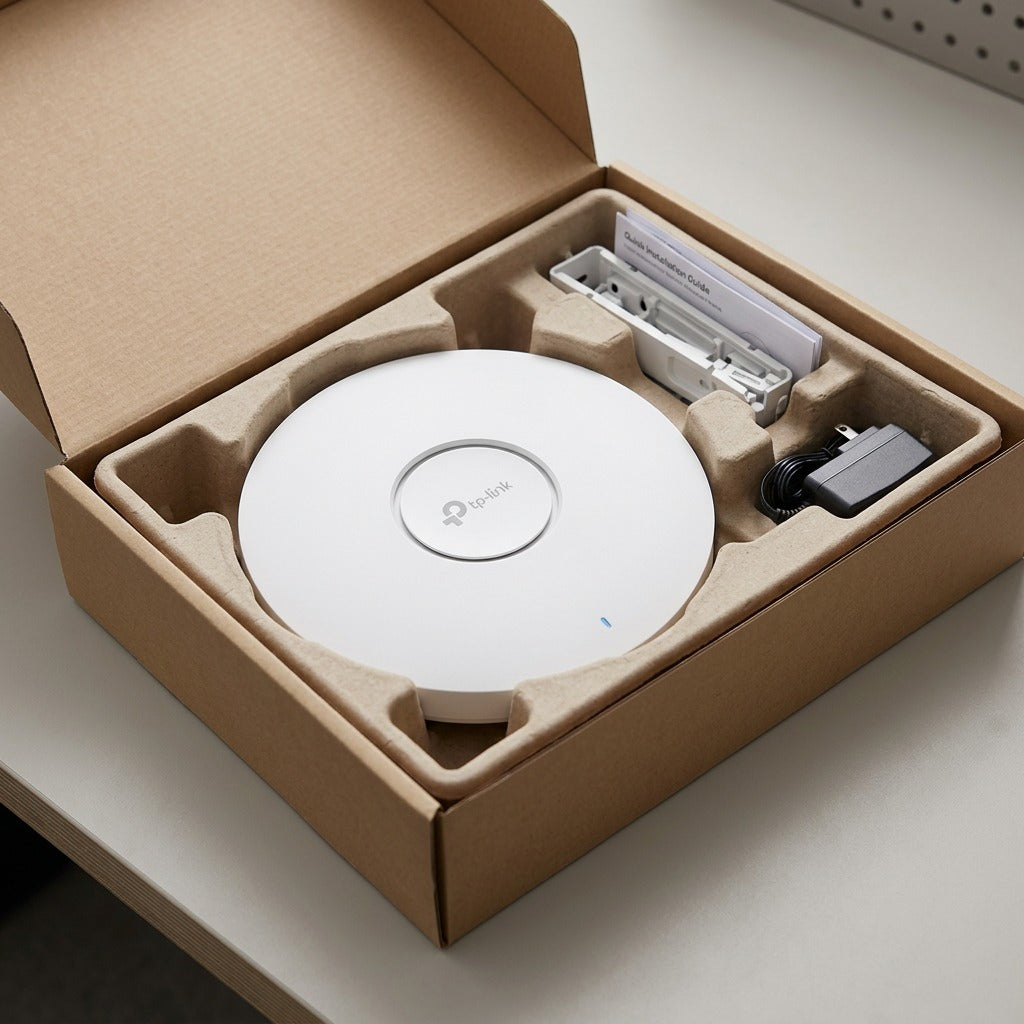

| Package Contents | EAP670 Unit, Ceiling/Wall Mount Kit, 12V/2A Power Adapter, Installation Guide |
