TP-Link Omada Managed Switch SG5452XMPP - 48-Port PoE++ with 4x 10G SFP+ Uplinks
TP-Link Omada Managed Switch SG5452XMPP - 48-Port PoE++ with 4x 10G SFP+ Uplinks
Fast Duty-Free Shipping: Direct dispatch across Canada. Same-day processing on orders placed before 2:00 PM EST with automated tracking dispatch.
Deploy high-capacity power and non-blocking aggregation to your edge devices with the TP-Link Omada SG5452XMPP. Engineered for high-density corporate networks, Wi-Fi 6/7 access points, and PTZ surveillance infrastructure, this Lite Layer 3 switch supplies a 770W PoE budget across 48 Gigabit access ports alongside 4× 10G SFP+ uplinks for ultra-fast backbone throughput.
Technical Fit & Operational Benefits

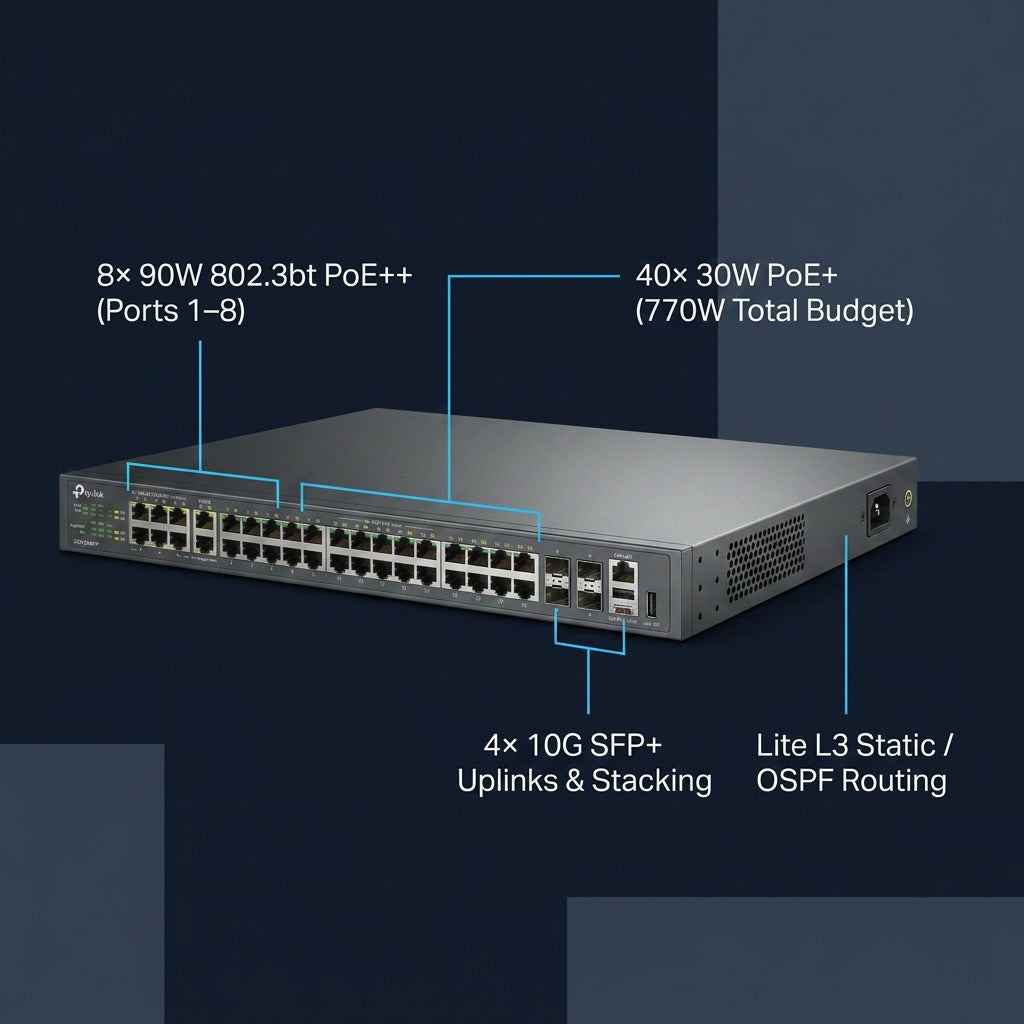

Ports 1–8 deliver up to 90W per port (802.3bt), powering high-draw Wi-Fi 7 APs and multi-sensor PTZ cameras without separate power injectors. Ports 9–48 provide standard 802.3at/af PoE+ (up to 30W/port).
Four 10G SFP+ optical slots eliminate network bottlenecks. Physically stack up to 4 units for 40 Gbps stacking bandwidth, simplified management, and built-in uplink redundancy.
Maintains continuous DC power to connected cameras and access points even during switch firmware upgrades or reboots, minimizing endpoint downtime across critical infrastructure.
Offload internal routing from your core firewall with Static Routing, RIP v1/v2, OSPF v2/v3, VRRP, and DHCP Server/Relay for efficient local subnet segmenting.
Engineering Specification Matrix
| Specification | Technical Parameter |
|---|---|
| MPN / UPC | SG5452XMPP / 810142823241 |
| Access Ports | 48× 10/100/1000 Mbps RJ45 (8× PoE++ up to 90W, 40× PoE+ up to 30W) |
| Uplink Slots | 4× 10G SFP+ (backward-compatible with 1G SFP) |
| PoE Power Budget | 770 W Total (IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Type 3/4) |
| Switching Capacity | 176 Gbps (Forwarding Rate: 130.94 Mpps) |
| Packet Buffer / MAC | 12 Mbit / 16K Entries (9 KB Jumbo Frame) |
| Hardware Stacking | Up to 4 units (SG5428X, SG5428XF, SG5428XMPP, SG5452X, SG5452XMPP) |
| Form Factor & Size | 1U 19-inch Rack-mountable (17.3 × 13.0 × 1.7 in / 440 × 330 × 44 mm) |
| Cooling & Surge | 3× Internal Fans | 6 kV Surge Protection on RJ45 ports |
| Centralized Management | Omada SDN (Cloud/Hardware/Software Controller), Web GUI, CLI, SNMP |
Centralized SDN Management & Security
Integrate the SG5452XMPP into the TP-Link Omada Software Defined Networking (SDN) platform for multi-site remote management, Zero-Touch Provisioning (ZTP), and unified configuration. Secure network access using robust enterprise features including 802.1X Authentication, RADIUS/TACACS+, Access Control Lists (L2–L4), ERPS ring recovery, and IP-MAC-Port Binding.

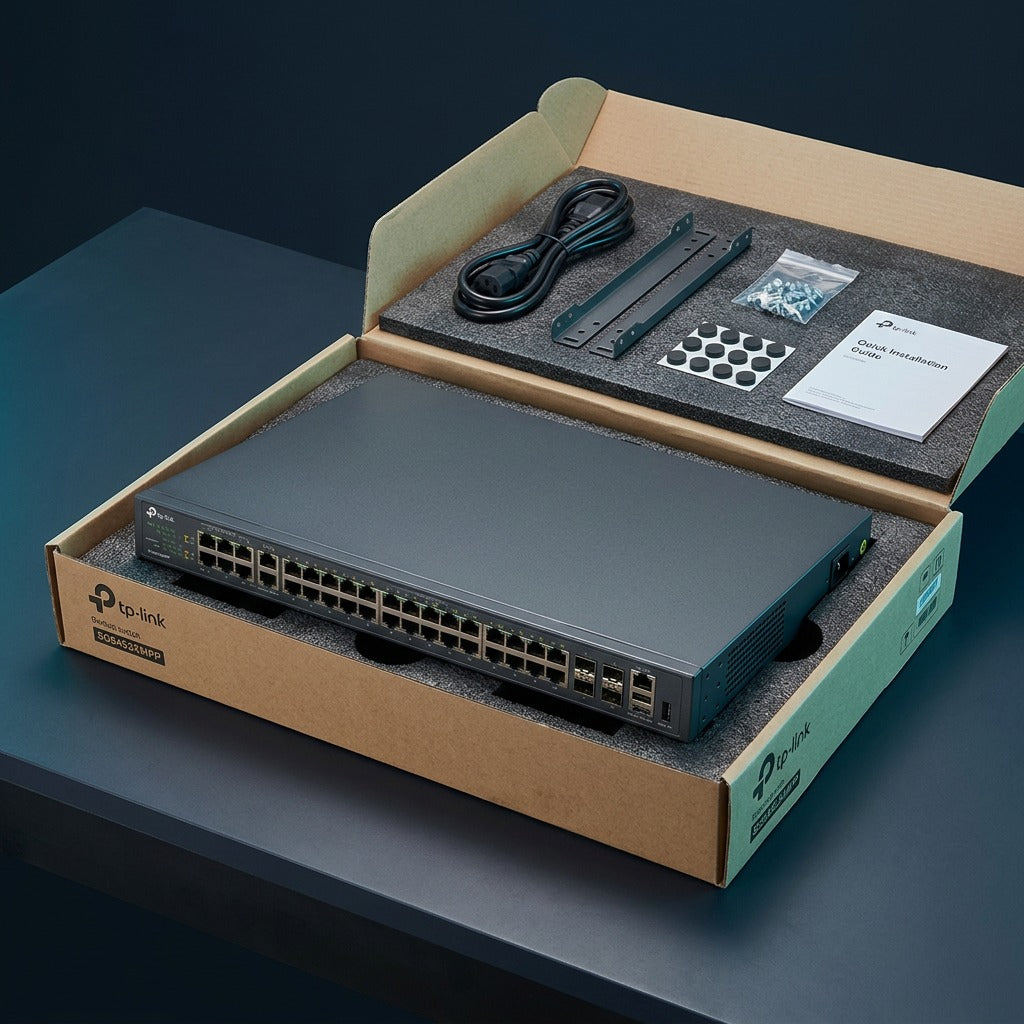

- Included in Box: TP-Link SG5452XMPP Switch, AC Power Cord, 19" Rack-Mount Kit, Rubber Feet Set, Quick Installation Guide.
- Compliance: CE, FCC, RoHS certified business-grade hardware.
- Canadian Order Fulfillment: Ships duty-free directly from regional Canadian inventory nodes for predictable project timelines.
