TP-Link Omada EAP773 Tri-Band Wi-Fi 7 Access Point - 10G Port & BE11000
TP-Link Omada EAP773 Tri-Band Wi-Fi 7 Access Point - 10G Port & BE11000
Eliminate wireless bottlenecks in high-density enterprise environments with multi-gigabit Wi-Fi 7 throughput and an integrated 10G uplink.
Enterprise Wireless Performance (Wi-Fi 7)
The TP-Link Omada EAP773 delivers enterprise-grade wireless infrastructure designed for bandwidth-intensive campus, office, and hospitality networks. Operating across 2.4 GHz, 5 GHz, and the uncongested 6 GHz band, this access point provides up to 10.65 Gbps aggregate wireless bandwidth, allowing your network to maintain peak performance under heavy concurrent client loads.
Equipped with a 10 Gbps Multi-Gigabit Ethernet port, the unit removes standard uplink restrictions, ensuring that full multi-gigabit wireless transmission transfers directly into your wired switching core without interface congestion.

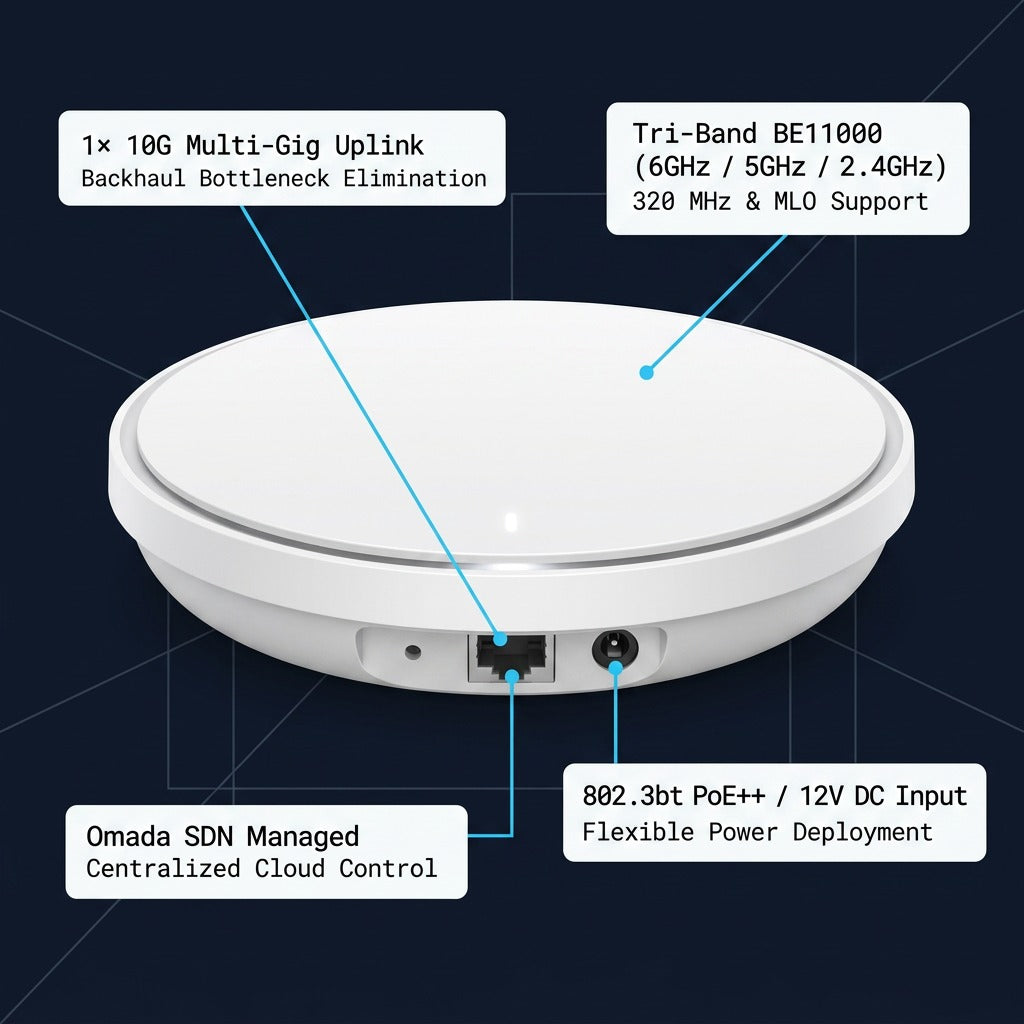

Key Technical Capabilities
Multi-Link Operation (MLO) allows devices to send and receive data across multiple frequency bands simultaneously, doubling maximum channel width to 320 MHz on 6 GHz for deterministic low latency.
A single 100/1000/2500/5000/10000 Mbps auto-negotiating RJ45 interface unlocks the full speed potential of Wi-Fi 7 backhaul across your 10GbE network core.
Engineered for dense client environments using 4096-QAM modulation, MU-MIMO, Airtime Fairness, and Load Balancing to optimize capacity across every connected endpoint.
Deploy, configure, and monitor your entire wireless footprint via Omada Hardware Controllers (OC200/OC300/OC400), Software Controllers, or Cloud-Based platforms.
Technical Fit & Deployment Matrix
| Specification | Technical Detail |
|---|---|
| Wireless Standard | IEEE 802.11be/ax/ac/n/g/b/a (Wi-Fi 7 Tri-Band) |
| Band Throughput | 6 GHz: 5760 Mbps | 5 GHz: 4320 Mbps | 2.4 GHz: 574 Mbps |

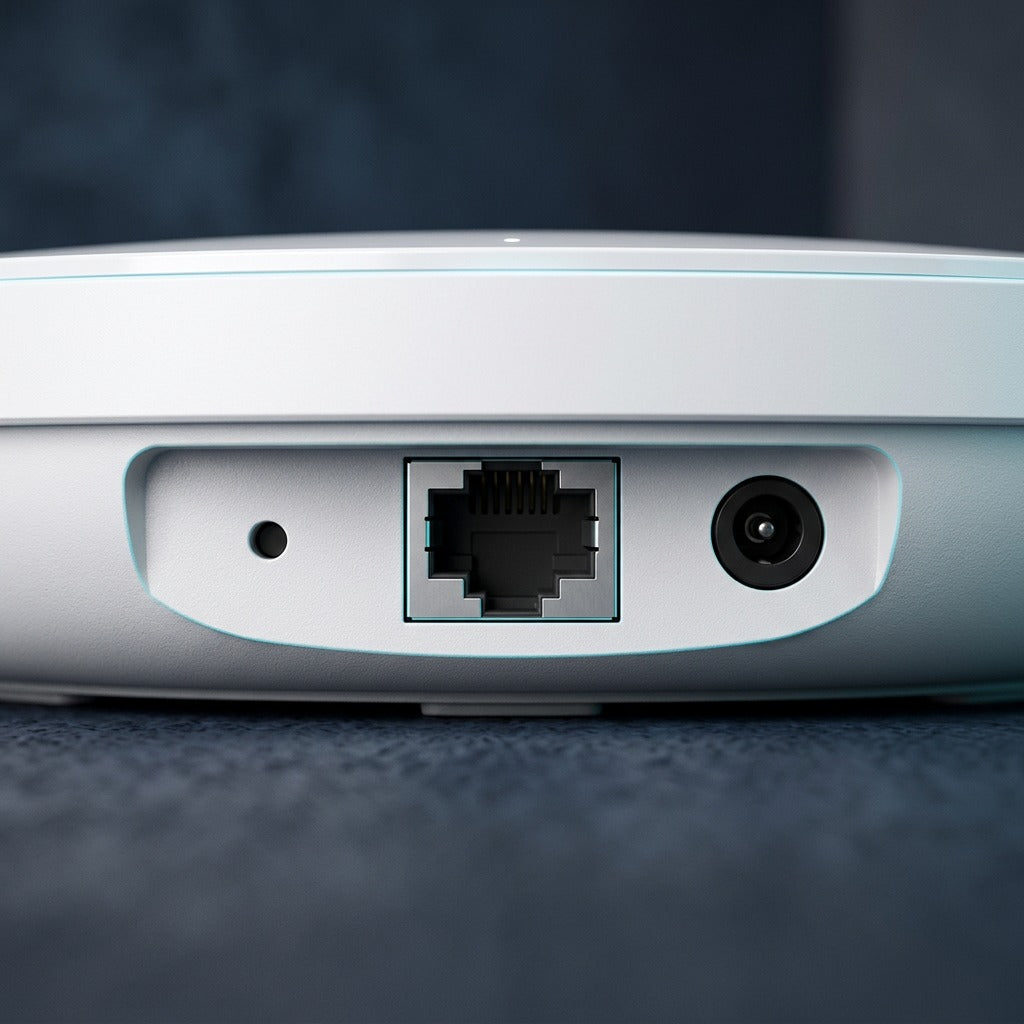

| Network Interface | 1× 10G Multi-Gigabit RJ45 Port |
| Power Methods | 802.3bt PoE++ (25.94 W max) or 12V / 2.5A DC (adapter sold separately) |
| PoE Fallback Operation | 802.3at: 6 GHz TX power downgraded | 802.3af: Diagnostic LAN only (radios off) |

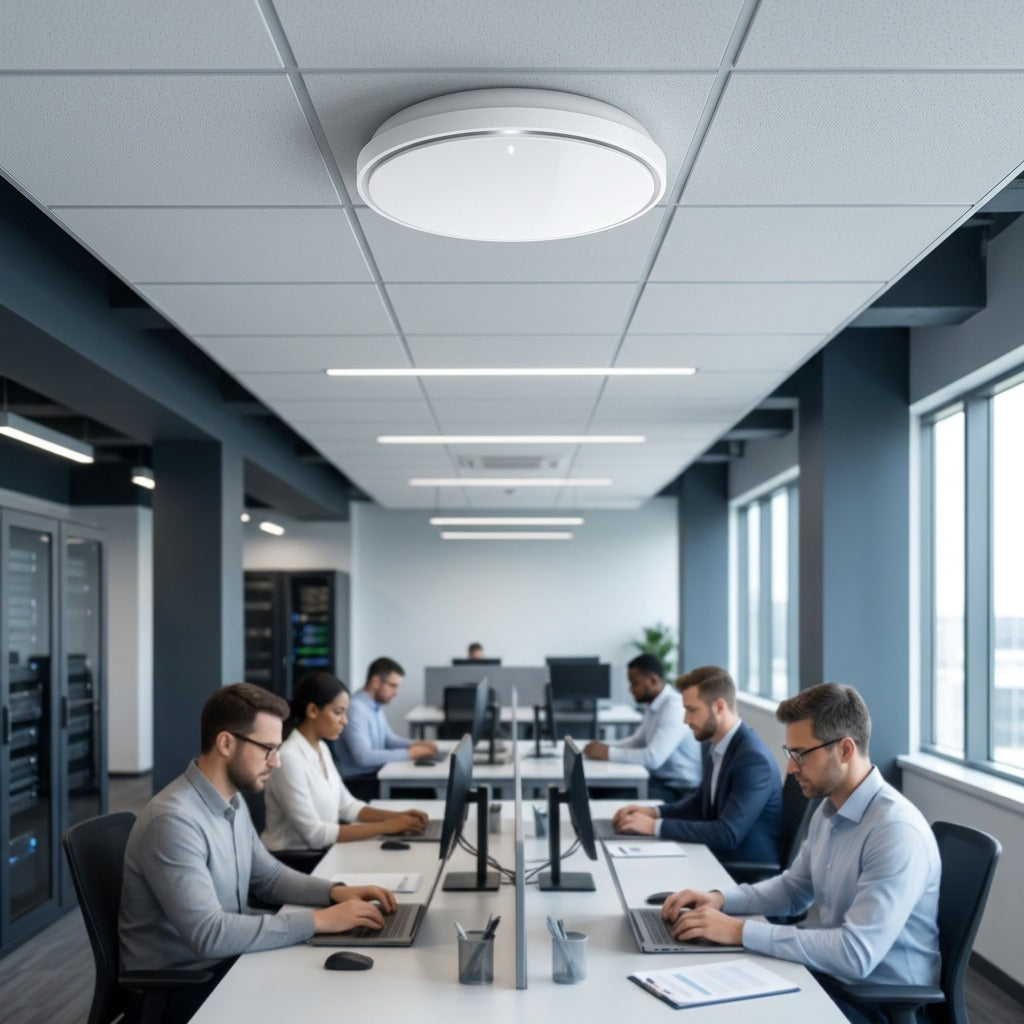

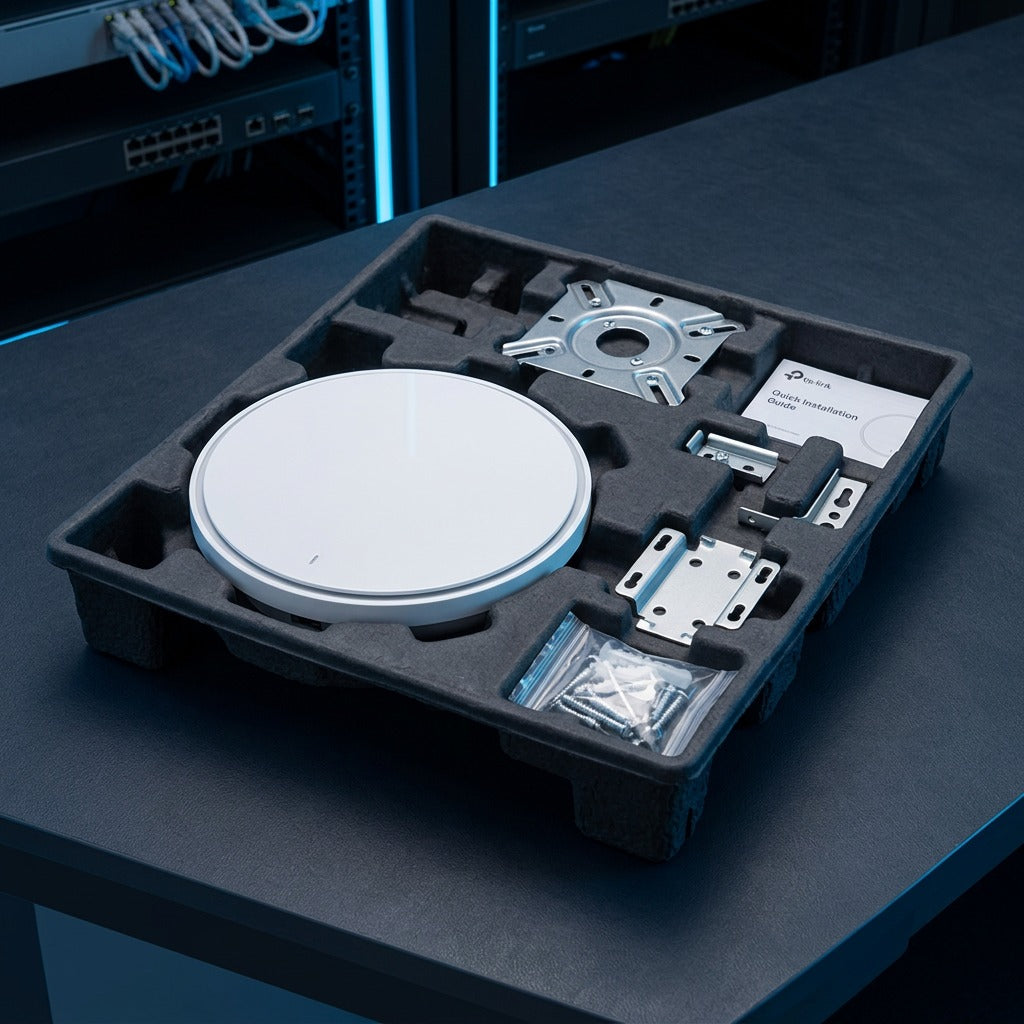

| Mounting Options | Ceiling mount, drop-ceiling T-rail, and flat wall mount (kits included) |

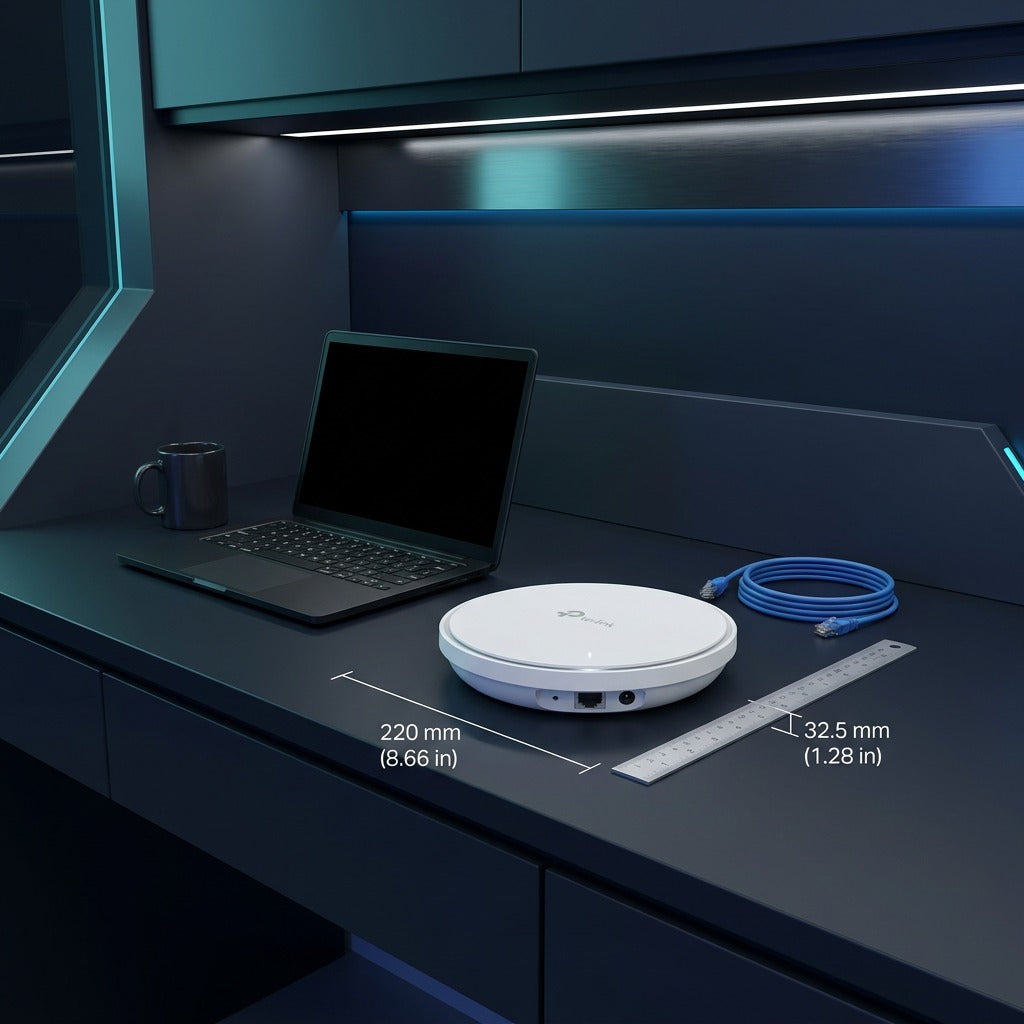

| Dimensions & Weight | 220 mm × 220 mm × 32.5 mm | 1.32 kg (2.91 lbs) |
| Security Protocols | WPA3-Enterprise, WPA3-Personal, WPA2, 802.1X, Captive Portal, Rogue AP |
| Management Support | Omada SDN (OC200, OC300, OC400, Software, or Cloud Controller) |
| Certifications | IC (Industry Canada), FCC, CE, RoHS |
Buying Confidence & Logistics Certainty
Source authentic enterprise hardware without pricing delays or login restrictions. Every unit is backed by manufacturer business-class hardware coverage and ships directly to Canadian operators.
Fast, duty-free regional shipping across Canada.
Orders placed before 2:00 PM EST process same-day.
Genuine authorized hardware with lifetime warranty backing.
