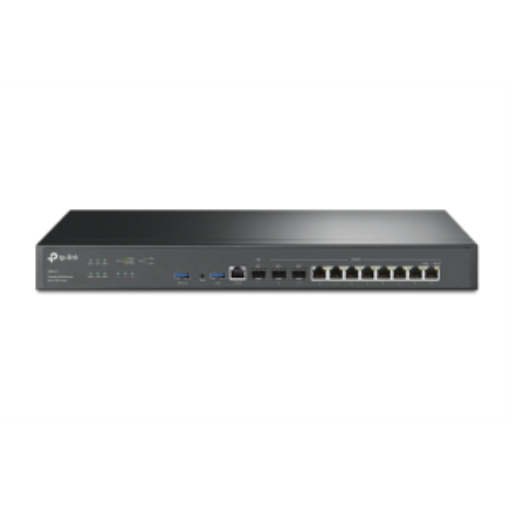

TP-Link Omada ER8411 10G Multi-WAN VPN Router

TP-Link Omada ER8411 10G Multi-WAN VPN Router

$899.99
Skip to product information
TP-Link Omada ER8411 10G Multi-WAN VPN Router
  • TP-Link Omada ER8411 10G Multi-WAN VPN Router
  • TP-Link Omada ER8411 10G Multi-WAN VPN Router
TP-Link Omada ER8411 10G Multi-WAN VPN Router

TP-Link Omada ER8411 10G Multi-WAN VPN Router

$899.99
● LOCAL CANADIAN WAREHOUSE STOCK MPN: ER8411 UPC: 840030703300 FORM: 1U RACKMOUNT

Eliminate bandwidth bottlenecks and safeguard enterprise uptime with the TP-Link Omada ER8411, delivering dual 10G SFP+ throughput, 2.3 million concurrent sessions, and hardware-redundant power supplies designed for high-density business networks.

Core Operational Benefits

Engineered for technical environments that demand uninterrupted connectivity, high-capacity site-to-site tunnels, and centralized management across multi-tenant deployments.

10G SFP+ Enterprise Edge Dual 10GE SFP+ ports (1 WAN, 1 WAN/LAN) provide high-capacity fiber uplinks capable of handling up to 9,445 Mbps static/DHCP NAT throughput.
High-Capacity Hardware Core Powered by a Quad-Core Cortex-A72 processor at 2.2 GHz and 4 GB DDR4 DRAM to sustain up to 2.3 million concurrent connections and 20,000 new sessions/sec.
Dual Redundant Internal AC Power Integrated dual hot-swappable 100–240V AC power supplies safeguard the appliance against single-source electrical faults and prevent site dropouts.
Multi-WAN Aggregation & Failover Deploy up to 10 WAN interfaces with intelligent load balancing, policy-based routing, and 4G/3G USB cellular backup via dual USB 3.0 ports.

Hardware & Interface Matrix

INTERFACE / SPEC TECHNICAL SPECIFICATION
10G SFP+ WAN 1× 10GE SFP+ Optical / Copper Transceiver Port
10G SFP+ WAN/LAN 1× 10GE SFP+ Flexible Port
Gigabit SFP 1× Gigabit SFP WAN/LAN Port
Gigabit RJ45 8× 10/100/1000 Mbps RJ45 WAN/LAN Ports
USB Expansion 2× USB 3.0 Type-A (Storage & 4G/3G Modem Failover)
Management / Console 1× RJ45 Console Port
Processor & RAM Quad-Core Cortex-A72 @ 2.2 GHz | 4 GB DDR4 DRAM
Power Architecture Dual Redundant Internal AC (100–240 VAC, 50/60 Hz)
Chassis Dimensions 1U 19-inch Rackmount (440 × 220 × 44 mm / 17.3 × 8.7 × 1.7 in)

Encrypted Tunneling & Network Security

Deploy secure multi-branch architectures with dedicated hardware crypto acceleration supporting comprehensive enterprise protocols:

  • High-Speed VPN Throughput: Delivers up to 4,486 Mbps SSL VPN, 4,424 Mbps OpenVPN, 3,099 Mbps IPsec (ESP-SHA1-AES256), and 1,411 Mbps WireGuard.
  • Security Defenses: Stateful policy firewall, Deep Packet Inspection (DPI at 5,524 Mbps TCP), IPS/IDS protection (4,924 Mbps TCP), DoS defense, IP-MAC binding, and ARP inspection.
  • Access Management: 802.1Q VLAN support, multi-net DHCP scopes, RADIUS authentication, and isolated guest portal management.

SDN Management & Environment Compatibility

The ER8411 integrates into the TP-Link Omada Software-Defined Networking ecosystem for centralized oversight alongside switches and access points:

  • Controller Support: Compatible with Omada Hardware Controllers (OC200, OC300), Omada Software Controller, and Omada Cloud-Based Controller with Zero-Touch Provisioning (ZTP).
  • Optical Transceiver Fit: Accepts standard 10G SFP+ and 1G SFP multi-mode/single-mode transceivers, Direct Attach Copper (DAC) cables, and RJ45 copper transceivers.
  • Operating Parameters: 0°C to 40°C operating temperature; 10% to 90% non-condensing humidity; CE, FCC, and RoHS certified.
  • Package Contents: ER8411 Gateway, 2× Detachable AC Power Cords, 19-inch Rackmount Bracket Kit with Screws, Rubber Feet, Quick Installation Guide.

Canadian Logistics & Order Execution

Verified Canadian Fulfillment Orders route directly from domestic Canadian warehouse facilities for fast, duty-free ground and express shipping. Standard manufacturer 5-Year Limited Hardware Warranty included.
